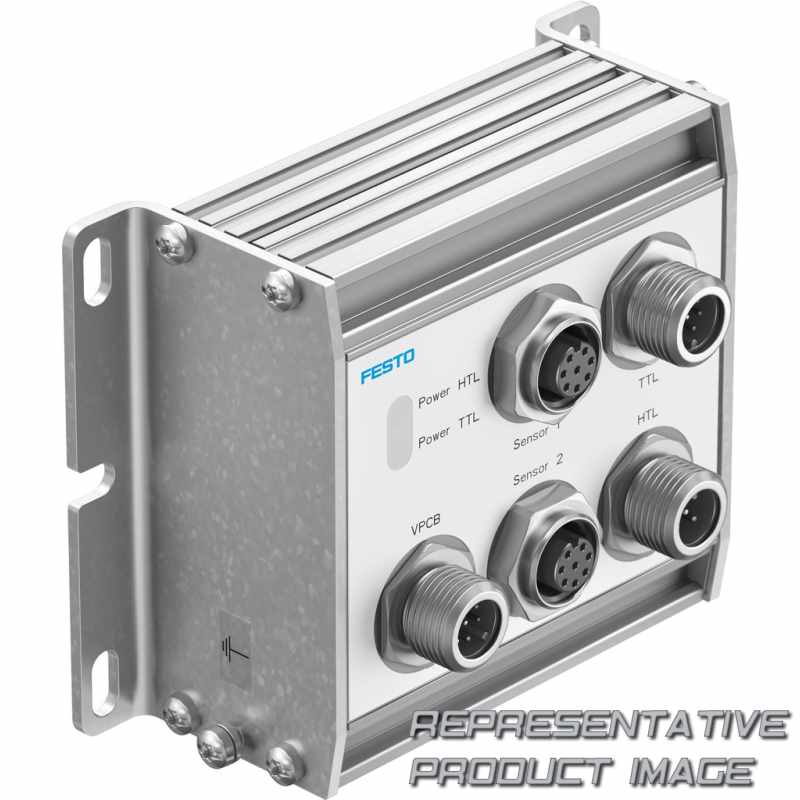

| Material housing | Anodised wrought aluminium alloy | ||
| Note on materials | RoHS-compliant | ||
| Electrical connection for sensor, number of pins/wires | 8 | ||
| Electrical connection for sensor, connection type | 2x socket | ||
| Electrical connection for valve, connection technology | M12x1, A-coded to EN 61076-2-101 | ||
| Electrical connection output 2, number of pins/wires | 5 | ||
| Electrical connection for output 2, connection type | Plugs | ||
| Electrical connection output, number of connections/cores | 8 | ||
| Electrical connection output, connection type | Plugs | ||
| analog input | HTL signal: high: min. 18 V, low: max. 2 V TTL signal: high: min. 2.4 V, low: max. 0.4 V | ||
| Ambient temperature | -5 °C ... 50 °C | ||
| Degree of protection | IP65 | ||
| LABS (PWIS) conformity | VDMA24364-B2-L | ||
| Shock resistance | Shock test with severity level 2 to FN 942017-5 and EN 60068-2-27 | ||
| CE marking (see declaration of conformity) | To UK instructions for EMC To UK RoHS instructions | ||
| KC mark | KC-EMV | ||
| Current rating per output | 50 mA | ||
| Residual ripple | 5 % | ||
| Max. electrical power consumption | 6 W | ||
| Operational voltage range DC | 20,4 V ... 30 V | ||
| Reverse polarity protection | yes | ||
| Diagnostic function | Display via LED |
| Material seals | FPM NBR | ||
| Type of mounting | Via through-hole for M4 screw | ||
| Electrical connection for sensor, connection technology | M12x1, A-coded to EN 61076-2-101 | ||
| Electrical connection for valve, number of pins/wires | 8 | ||
| Electrical connection for valve, connection type | Plugs | ||
| Electrical connection for output 2, connection technology | M12x1, A-coded to EN 61076-2-101 | ||
| Electrical connection for output 2, function | HTL | ||
| Electrical connection output, connector system | M12x1, A-coded to EN 61076-2-101 | ||
| Electrical connection output, function | TTL | ||
| Product weight | 350 g | ||
| Note on degree of protection | In assembled state | ||
| Protection against direct and indirect contact | PELV | ||
| Corrosion resistance class CRC | 1 - Low corrosion stress | ||
| Vibration resistance | Transport application test with severity level 2 to FN 942017-4 and EN 60068-2-6 | ||
| CE mark (see declaration of conformity) | To EU EMC Directive In accordance with EU RoHS Directive | ||
| Approval | RCM trademark | ||
| Current consumption with no-load outputs | 50 mA | ||
| Nominal operating voltage DC | 24 V | ||
| Duty cycle | 100% | ||
| Output frequency | TTL-Signal: max. 7200 Hz HTL signal: max. 450 Hz | ||
| Mounting position | optional | ||
| Instructions on use | The product is suitable for industrial purposes only. Measures to eliminate radio interference may be required in residential areas. |
