| Sealing Material | nitrile | ||
| filter media type | microglass (vg) | ||
| valve configuration options | bypass set at 29 psi (2 bar) | ||
| retention rating | 20.0 µm | ||
| indicator type | visual | ||

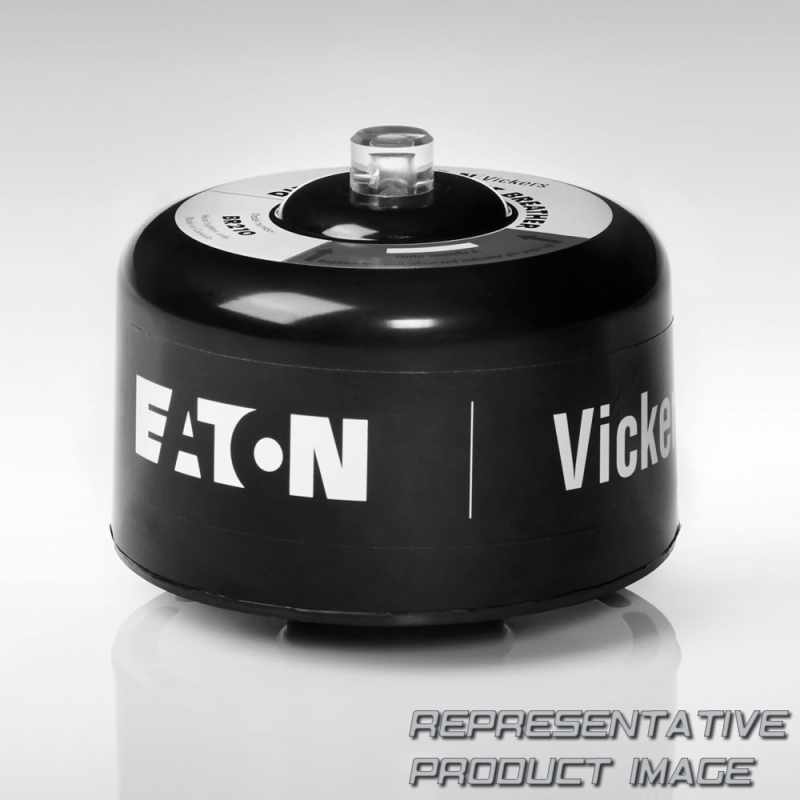

| filter type | breather filter | ||
| compliances | 1.5-16 un-2b threads per asme b1.1 | ||
| product width | 133.4 mm | ||
| product length/depth | 133.4 mm |
| fluid group (dgrl 2014/68/eu) | 2 | ||
| connection type | sae/ansi flange | ||
| operating temperature - max | 80 °c | ||
| operating temperature - min | -10 °c | ||
| code stamp | none | ||
| filter fineness | 25 vg | ||
| Product weight | .3 kg | ||
| product height | 105 mm |
