| weight rail (kg) | 0.50 | ||
| mq - dyn. cross moment capacity (nm) | 171 | ||
| m0q - static cross moment capacity (nm) | 373 | ||
| c0 - static load capacitiy (n) | 31,400 | ||
| n - lateral fixing hole spacing | 53 | ||
| l2 - interior fixing hole spacing | 35 | ||
| l - carriage length | 72.50 | ||

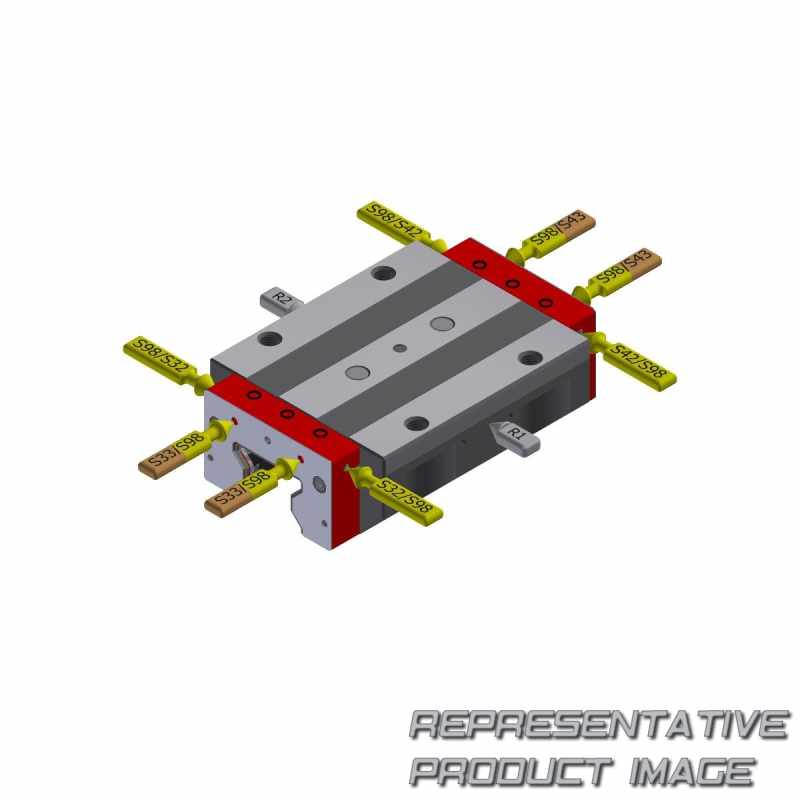

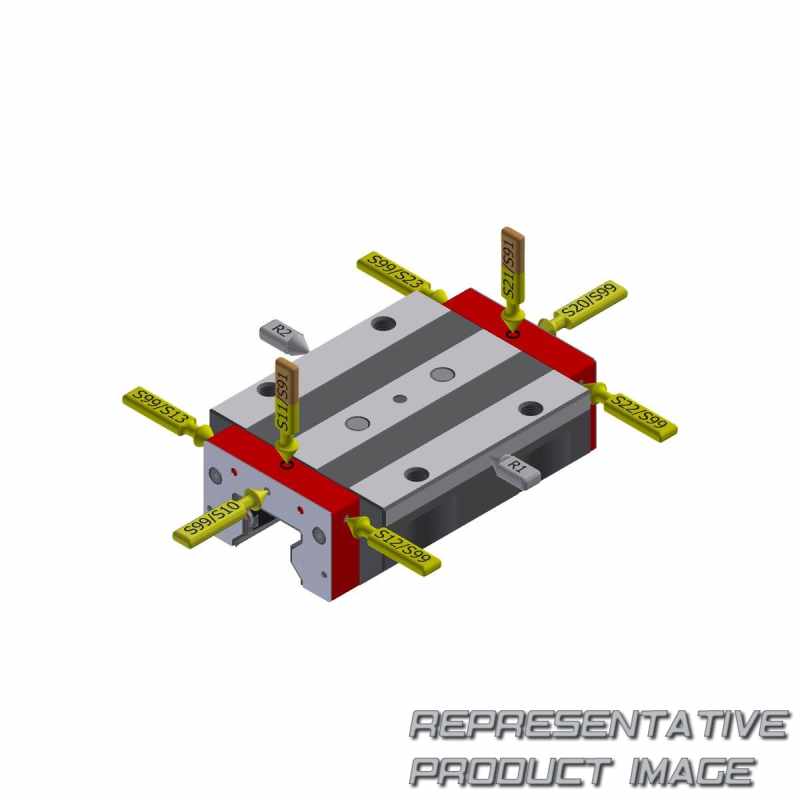

| c7 - position of lateral lube hole | 10.30 | ||
| c3 - position of lateral lube hole | 5.20 | ||
| b2 - distance between locating faces | 21.50 | ||
| a - system height in mm | 30 | ||
| Preload class | v2 | ||
| buildsize | 20 | ||

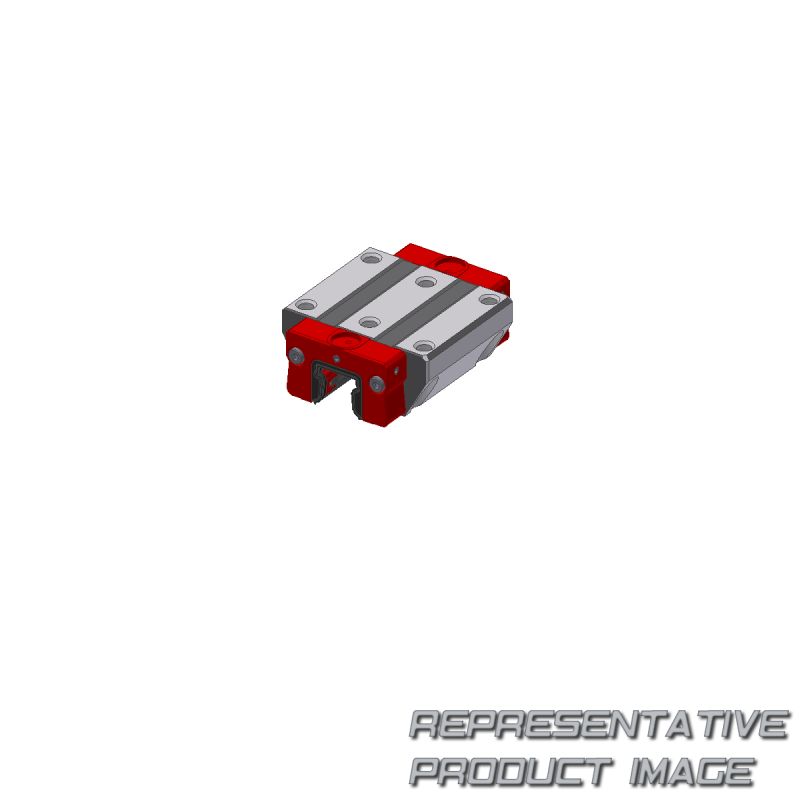

| type (monorail carriage) | bm |
| ml - dyn. longitud. moment capacity (nm) | 134 | ||
| m0l - static longitud. moment capacity (nm | 292 | ||
| c100 - dynamic load capacity (n) | 14,400 | ||
| o - reference face height | 8.50 | ||
| l6 - steel body length | 51.50 | ||
| l1 - exterior fixing hole spacing | 40 | ||
| j - carriage height | 25.50 | ||
| c4 - position of lateral lube hole | 10.80 | ||
| c1 - position of center front lube hole | 5.20 | ||
| b - carriage width in mm | 63 | ||
| coating | cn | ||
| Accuracy class | g0 | ||
| carriage build form | a |
