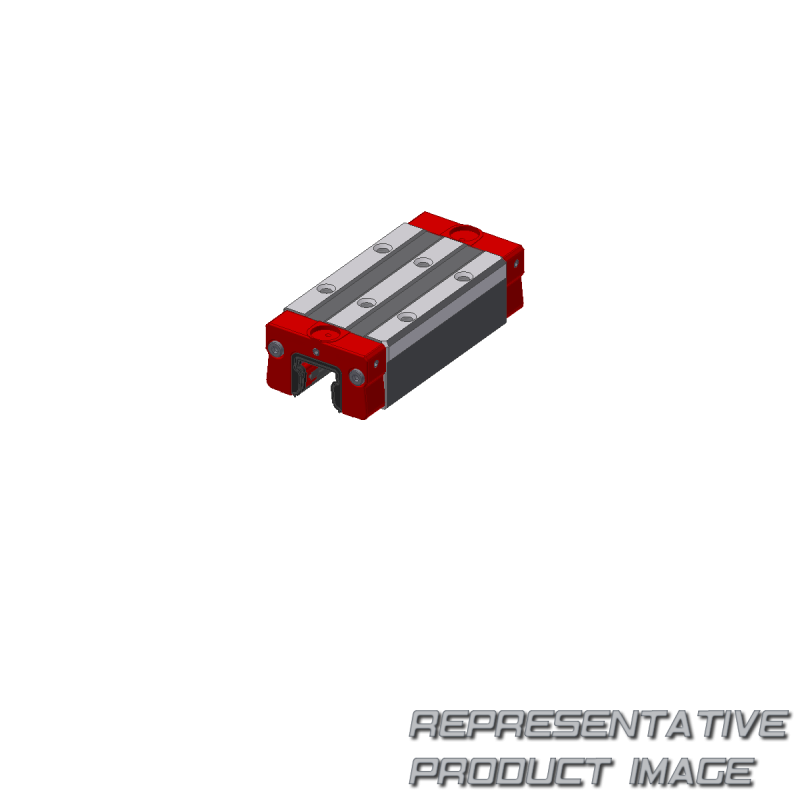

| type (monorail carriage) | bm | ||
| buildsize | 35 | ||
| Preload class | v2 | ||
| a - system height in mm | 48 | ||
| b2 - distance between locating faces | 18 | ||

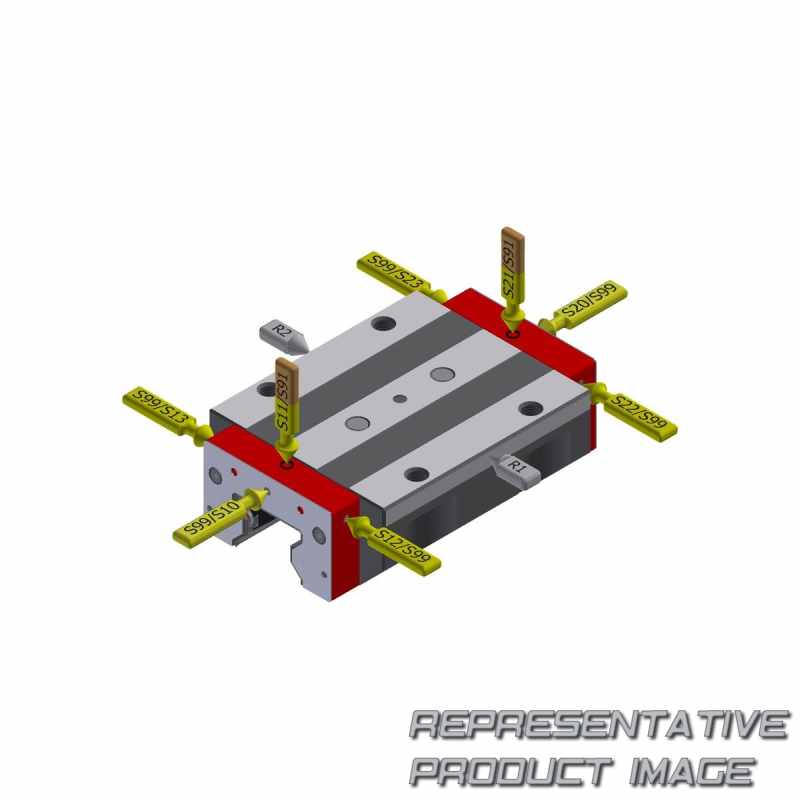

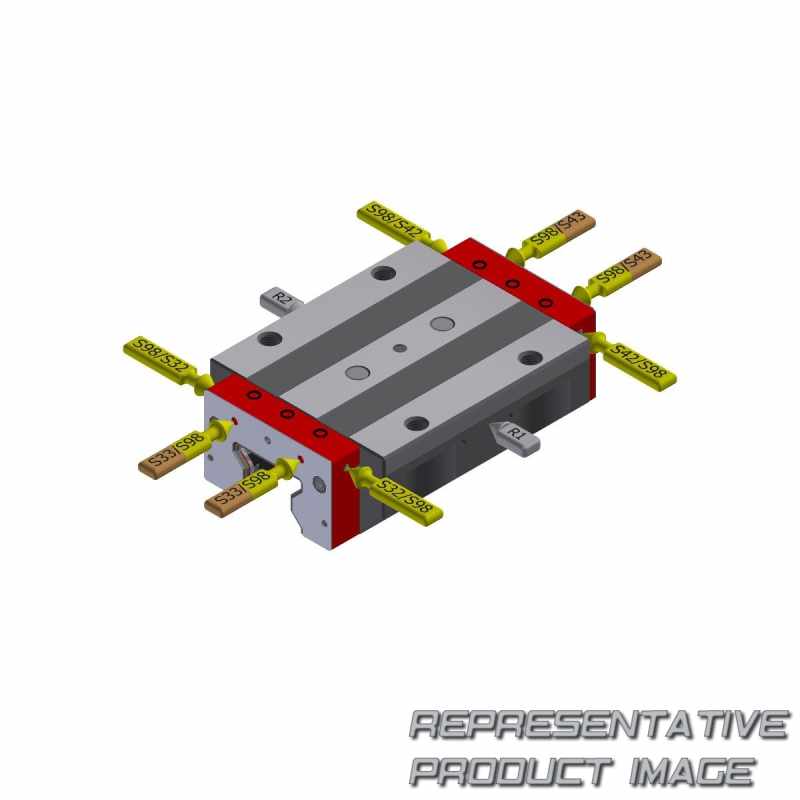

| c3 - position of lateral lube hole | 7 | ||
| c7 - position of lateral lube hole | 23.60 | ||
| l - carriage length | 137.40 | ||
| l6 - steel body length | 105.10 | ||
| o - reference face height | 8.50 | ||
| c100 - dynamic load capacity (n) | 46,700 | ||
| m0l - static longitud. moment capacity (nm | 2,104 | ||
| ml - dyn. longitud. moment capacity (nm) | 891 |
| carriage build form | g | ||
| Accuracy class | g3 | ||
| coating | cn | ||
| b - carriage width in mm | 70 | ||
| c1 - position of center front lube hole | 7 | ||
| c4 - position of lateral lube hole | 26.10 | ||
| j - carriage height | 41 | ||
| l1 - exterior fixing hole spacing | 72 | ||
| n - lateral fixing hole spacing | 50 | ||
| c0 - static load capacitiy (n) | 110,300 | ||
| m0q - static cross moment capacity (nm) | 2,048 | ||
| mq - dyn. cross moment capacity (nm) | 867 | ||
| weight rail (kg) | 1.80 |
