| Brand | SNR | ||
| Ball bushings category | Standard ball bushings, closed | ||
| Material outer cylinder or steel segments | X105CrMo17 | ||
| Initial greasing | No | ||

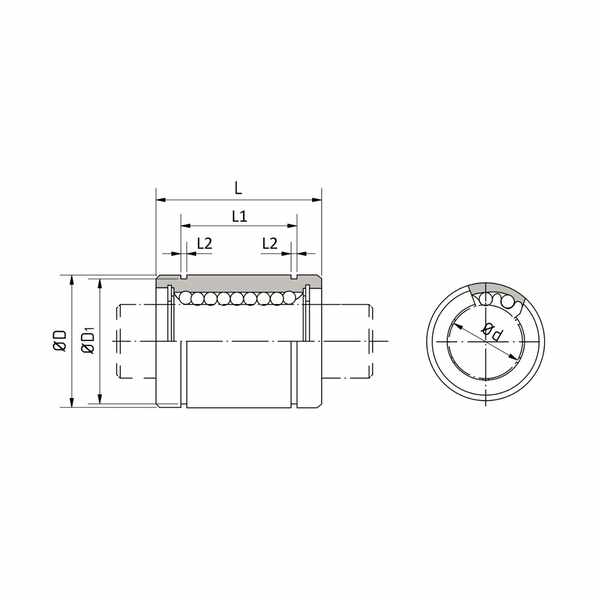

| L - Length tolerance | 0/-0,2 | ||
| L1 tolerance | 0/-0,2 | ||
| L2 | 1,1 mm | ||
| Cmin | 0,195 kN | ||
| C0min | 0,402 kN | ||
| Tmin - Min operating temperature | -20 °C |
| Design type | BBE | ||
| Standard | ISO dimensions | ||
| Material Cage | X5CrNi18-10 | ||
| L - Length | 25 mm | ||
| L1 | 16,5 mm | ||
| D1 - Diameter | 15,2 mm | ||
| Number of ball rows | 4 | ||
| Cmax | 0,276 kN | ||
| C0max | 0,568 kN | ||
| Tmax - Max operating temperature | 140 °C |
