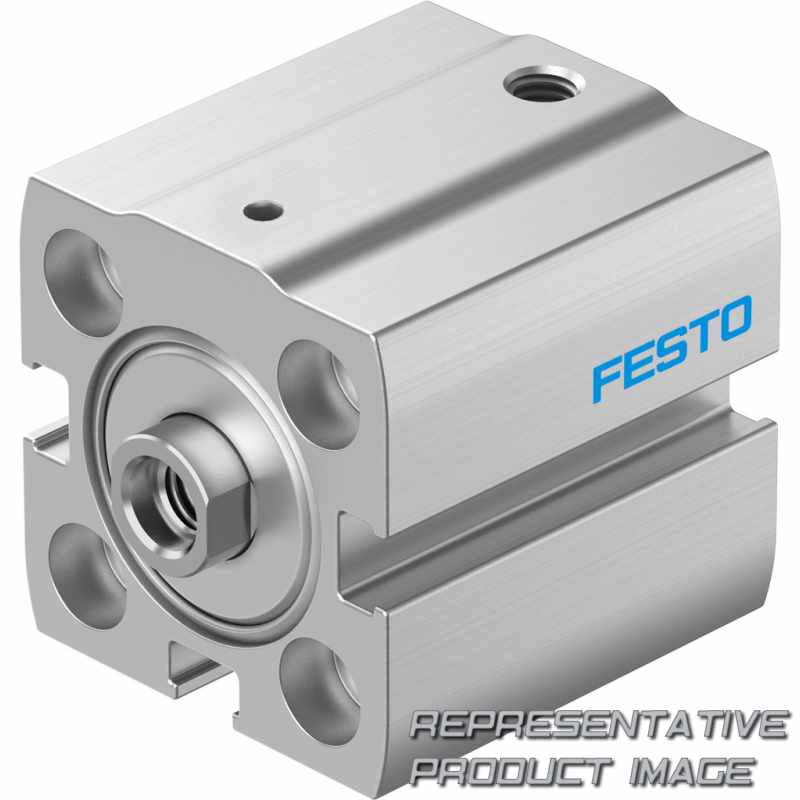

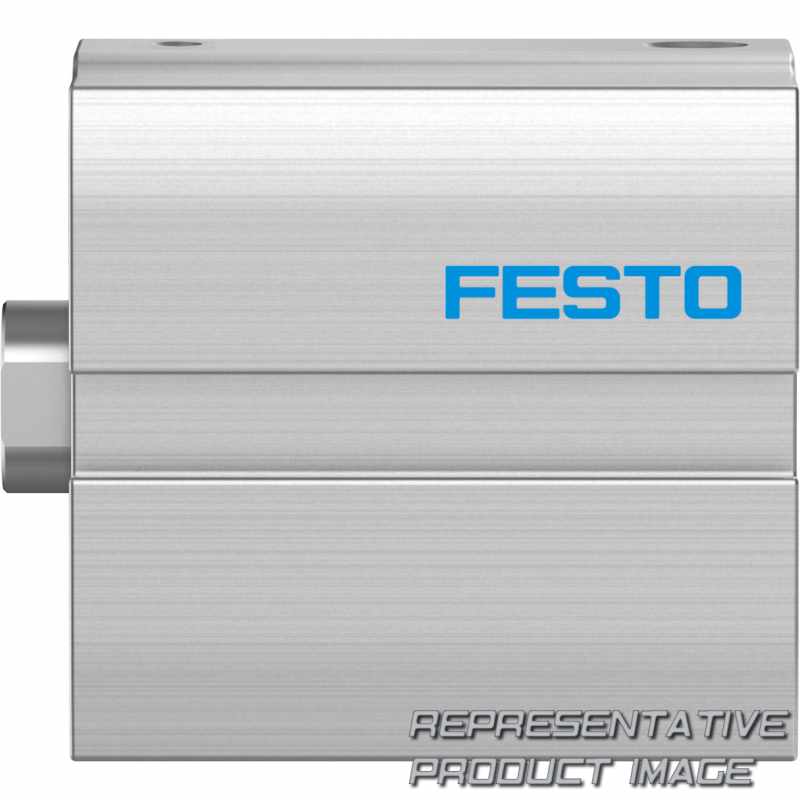

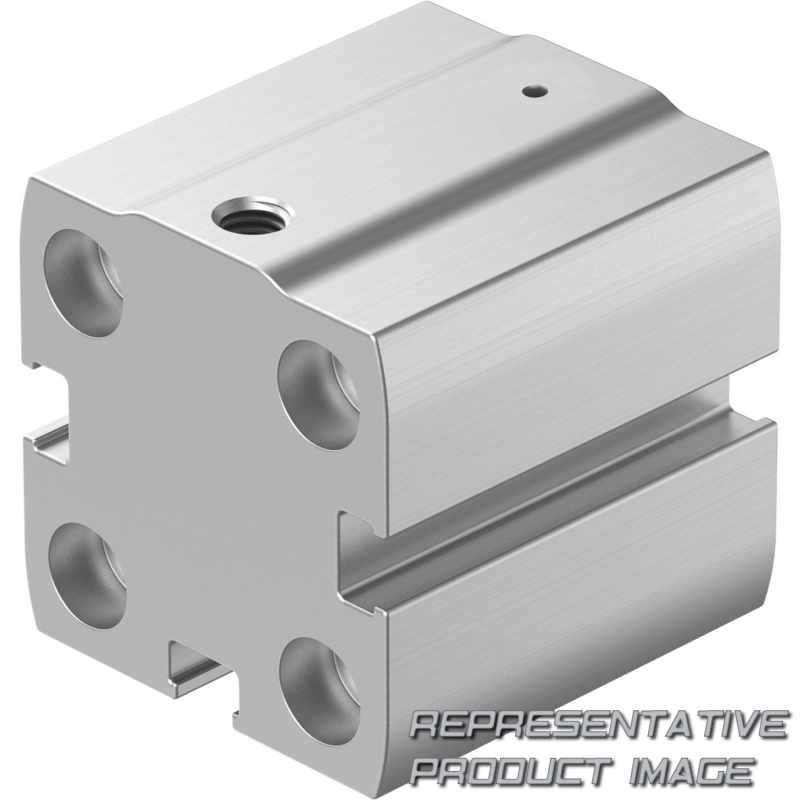

FESTO 8076501 compact cylinder

Name: 8076501 FESTO
Brand: FESTO
SKU: 663227-en-gbp
Price: 28.58 GBP
Availability: InStock

AEN-S-20-5-I-P

£28.58

2 pcs. with 1 to 3 days delivery to United States

Specifications

Series (AEN)	Compact cylinder, single-acting, based on ISO 21287
Design type (S)	Short
Piston diameter [mm] (20)	20
Stroke [mm] (5)	5
Piston rod thread type (I)	Female thread
Cushioning (P)	Elastic cushioning rings/plates on both sides
Position sensing	None

Active direction	Single-acting, pushing
Piston rod thread extension	None
Custom thread	None
Piston rod extension	None
Improved running performance	None
Temperature resistance	Standard
Captive rating plate	Rating plate, glued

Material piston rod		High-alloy stainless steel
Material dynamic seals		NBR
Note on materials		RoHS-compliant
Type of mounting		With through-hole Via female thread With accessories Either:
Basic weight for 0 mm stroke		51 g
Moving mass for 0 mm stroke		11 g
Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke		13 N
Ambient temperature		0 °C ... 60 °C
Corrosion resistance class CRC		1 - Low corrosion stress
Operating medium		Compressed air to ISO 8573-1:2010 [7:4:4]
Variants		Piston rod at one end
Design		Piston Piston rod
Mode of operation		Pushing
Cushioning		Elastic cushioning rings/plates at both ends
Stroke		5 mm

Material housing		Anodised wrought aluminium alloy
Material cover		Anodised wrought aluminium alloy
Pneumatic connection		M5
Additional weight per 10 mm stroke		26 g
Additional moving mass per 10 mm stroke		6 g
Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke		162 N
Impact energy in end positions		0,055 J
LABS (PWIS) conformity		VDMA24364-B2-L
Note on operating and pilot medium		Lubricated operation possible (in which case lubricated operation will always be required)
Operating pressure		0,6 bar ... 10 bar
Symbol		00991730
Piston-rod end		Female thread
Mounting position		optional
Piston diameter		20 mm
