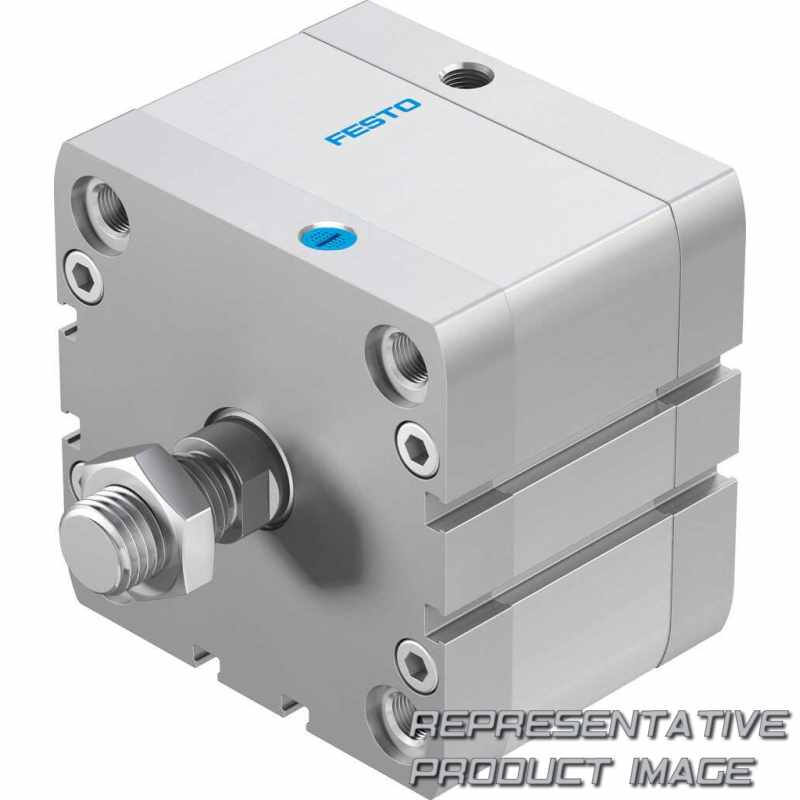

FESTO 593684 compact cylinder

Name: 593684 FESTO
Brand: FESTO
SKU: 662109-en-gbp
Price: 118.04 GBP
Availability: SoldOut

AEN-80-10-I-P-A

£118.04 ~~£199.69~~ -40%

Limited stock only available on quotation

Specifications

Series (AEN)	Compact cylinder, single-acting, based on ISO 21287
Design type	Standard
Piston diameter [mm] (80)	80
Stroke [mm] (10)	10
Piston rod thread type (I)	Female thread
Cushioning (P)	Elastic cushioning rings/plates on both sides
Position sensing (A)	For proximity sensor

Active direction	Single-acting, pushing
Piston rod thread extension	None
Custom thread	None
Piston rod extension	None
Improved running performance	None
Temperature resistance	Standard
Captive rating plate	Rating plate, glued

Material cylinder barrel		Wrought aluminium alloy Smooth anodised
Material cover		Die-cast aluminium, coated
Pneumatic connection		G1/8
Additional weight per 10 mm stroke		79 g
Additional moving mass per 10 mm stroke		25 g
Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke		2.810 N
Ambient temperature		-20 °C ... 120 °C
Corrosion resistance class CRC		2 - Moderate corrosion stress
Operating medium		Compressed air to ISO 8573-1:2010 [7:4:4]
Operating pressure		1 bar ... 10 bar
Position detection		Via proximity switch
Mounting position		optional
Based on standard		ISO 21287
Stroke		1 mm ... 25 mm

Material piston rod		High-alloy steel
Note on materials		RoHS-compliant
Type of mounting		With through-hole Via female thread With accessories Either:
Basic weight for 0 mm stroke		1.121 g
Moving mass for 0 mm stroke		400 g
Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke		2.640 N
LABS (PWIS) conformity		VDMA24364-B1/B2-L
Note on operating and pilot medium		Lubricated operation possible (in which case lubricated operation will always be required)
Mode of operation		Single-acting Pushing Pulling
Variants		Improved running performance Extended male piston rod thread Custom thread on the piston rod Extended piston rod With protection against rotation Heat-resistant seals max. 120°C Laser etched rating plate Pulling Piston rod at one end
Design		Piston Piston rod Profile barrel
Cushioning		Elastic cushioning rings/plates at both ends
Piston diameter		80 mm
