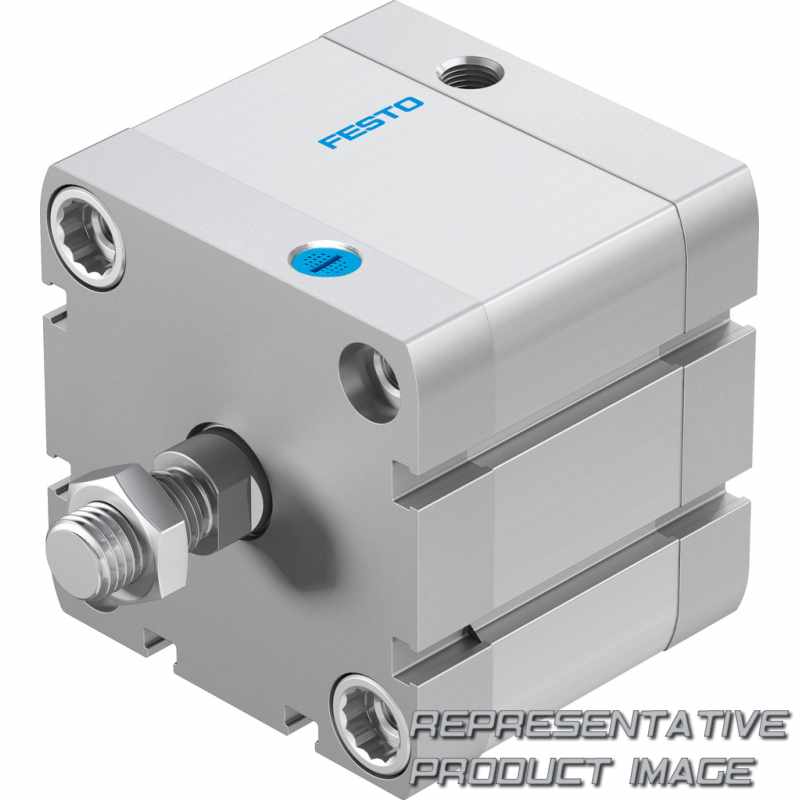

FESTO 673717 set of wearing parts

Name: 673717 FESTO
Brand: FESTO
SKU: 680445-en-gbp
Price: 179.42 GBP
Availability: InStock

AEN-63-...-P-A

£179.42

2 pcs. with 1 to 3 days delivery to United States

Specifications

Pneumatic connection	G1/8
Weight	722g

Material cylinder barrel		Wrought aluminium alloy Smooth anodised
Material cover		Aluminium Anodised
Pneumatic connection		G1/8
Additional weight per 10 mm stroke		59 g
Additional moving mass per 10 mm stroke		16 g
Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke		1.737 N
Ambient temperature		-20 °C ... 120 °C
Corrosion resistance class CRC		2 - Moderate corrosion stress
Operating medium		Compressed air to ISO 8573-1:2010 [7:4:4]
Operating pressure		1 bar ... 10 bar
Position detection		Via proximity switch
Mounting position		optional
Based on standard		ISO 21287
Stroke		1 mm ... 25 mm

Material piston rod		High-alloy steel
Note on materials		RoHS-compliant
Type of mounting		With through-hole Via female thread With accessories Either:
Basic weight for 0 mm stroke		722 g
Moving mass for 0 mm stroke		180 g
Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke		1.617 N
LABS (PWIS) conformity		VDMA24364-B1/B2-L
Note on operating and pilot medium		Lubricated operation possible (in which case lubricated operation will always be required)
Mode of operation		Single-acting Pushing Pulling
Variants		Improved running performance Extended male piston rod thread Custom thread on the piston rod Extended piston rod With protection against rotation Heat-resistant seals max. 120°C Laser etched rating plate Pulling Piston rod at one end
Design		Piston Piston rod Profile barrel
Cushioning		Elastic cushioning rings/plates at both ends
Piston diameter		63 mm
