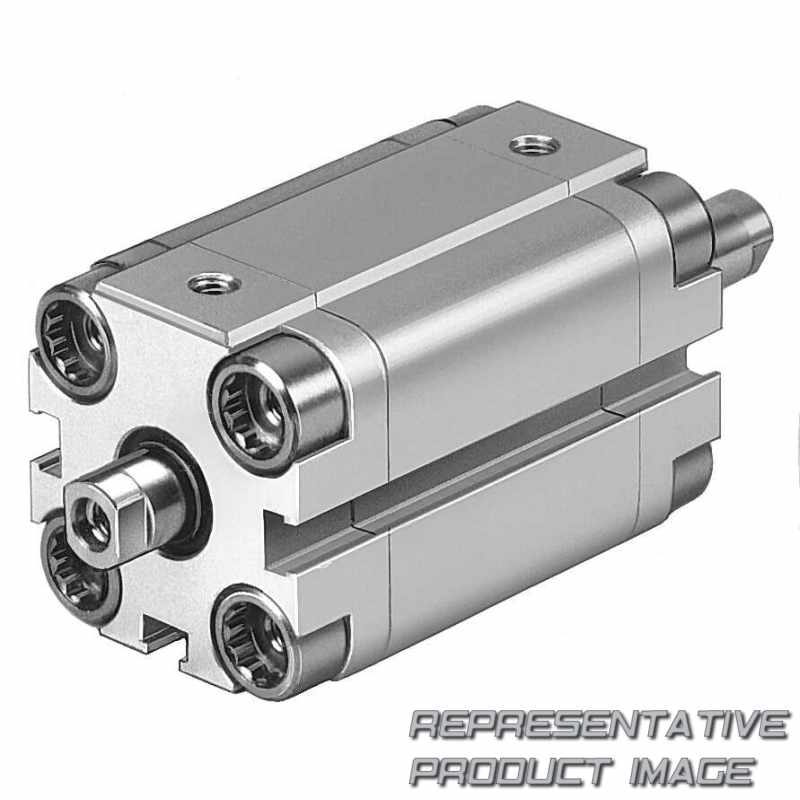

FESTO 156012 compact cylinder

Name: 156012 FESTO
Brand: FESTO
SKU: 725342-en-gbp
Price: 173.94 GBP
Availability: InStock

ADVU-20-5-P-A-S2

£173.94

4 pcs. with 1 to 3 days delivery to United States

Specifications

Series (ADVU)	Compact cylinder, double-acting
Piston diameter [mm] (20)	20
Stroke [mm] (5)	5
Piston rod thread type	Female thread
Cushioning (P)	Elastic cushioning rings/plates on both sides

Material cylinder barrel		Wrought aluminium alloy
Material dynamic seals		NBR TPE-U(PU)
Material collar screws		Galvanised steel
Type of mounting		With through-hole With accessories Either:
Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke		141 N
Ambient temperature		-20 °C ... 80 °C
Corrosion resistance class CRC		2 - Moderate corrosion stress
Operating medium		Compressed air to ISO 8573-1:2010 [7:4:4]
Variants		Through piston rod
Position detection		Via proximity switch
Piston-rod end		Female thread
Mounting position		optional
Piston diameter		20 mm

Material piston rod		High-alloy stainless steel
Material cover		Wrought aluminium alloy
Pneumatic connection		M5
Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke		141 N
Impact energy in end positions		0,14 J
LABS (PWIS) conformity		VDMA24364-B1/B2-L
Note on operating and pilot medium		Lubricated operation possible (in which case lubricated operation will always be required)
Operating pressure		17,4 psi ... 145 psi
Symbol		00991219
Design		Piston Piston rod
Mode of operation		Double-acting
Cushioning		Elastic cushioning rings/plates at both ends
Stroke		1 mm ... 200 mm
