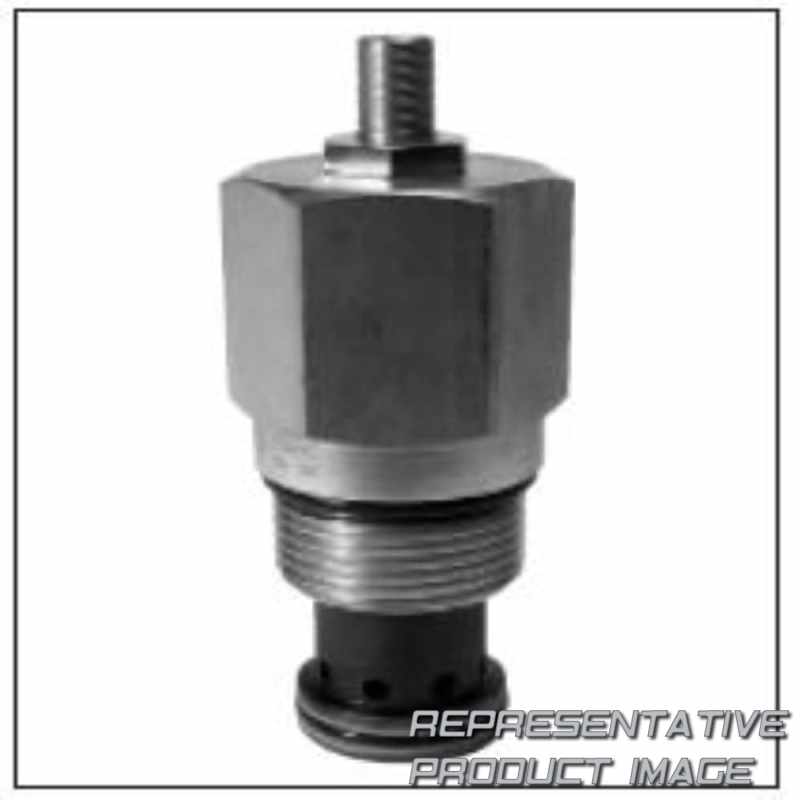

PARKER A06P2PZN

Name: A06P2PZN PARKER
Brand: PARKER
SKU: 803304-en-gbp
Price: 140.34 GBP
Availability: SoldOut

£140.34 ~~£280.67~~ -50%

Limited stock only available on quotation

Specifications

max. pressure	6000 psi, 420 bar
max. flow	106 gal/min, 400 l/min

Seal	screw
Weight	570g

Weight		1.26 lb, 0.57 kg
maximum operating temperature		+250 °f, +121 °c
installation torque		74 lb-ft, 100 nm
filter efficiency rating		iso 4406 18/16/13, sae class 4
for fluid type		mineral-based or synthetic hydraulic fluids
function		pilot operated
Mounting type		screw in cartridge valve
configuration		pressure relief w/reverse check
pressure control sensitivity		768 per turn psi, 53 per turn bar
pressure control range		145-6000 psi, 10-420 bar
maximum operating pressure		6000 psi, 420 bar
maximum inlet pressure rating		6000 psi, 420 bar
seal material		screw
flow rate		106 gal/min, 400 l/min

minimum operating temperature		-30 °f, -34 °c
Operating temperature		-30 to +250 °f, -34 to +121 °c
valve material		all parts steel. all operating parts hardened steel
maximum kinematic viscosity		45-2000 ssu (6 to 420 cst)
operation type		automatic
cavity size		c16-2
leak rate		5 @ 1450 psi (100 bar) drops/min
actuation type		pressure sensing
standard setting pressure		2900 psi, 200 bar
maximum pressure setting		6000 psi, 420 bar
maximum tank pressure		6000 psi, 420 bar
maximum flow rate		106 gal/min, 400 l/min
adjustment mechanism		screw
