| Weight | 0.074 kg | ||
| Medium | compressed air | ||
| min. medium temperature | -25 °c | ||
| min. ambient temperature | -25 °c | ||
| working pressure min. | -0.95 bar | ||
| frame size | 26 mm | ||
| compressed air connection 14 | Ø 4 | ||
| compressed air connection 12 | Ø 4 | ||
| exhaust (3,5) | with directional exhaust (3/5) | ||
| port 3 / 5 | g 1/8 | ||
| compressed air connection 2 / 4 | Ø 8x1 | ||
| compressed air connection 1 | Ø 8x1 | ||

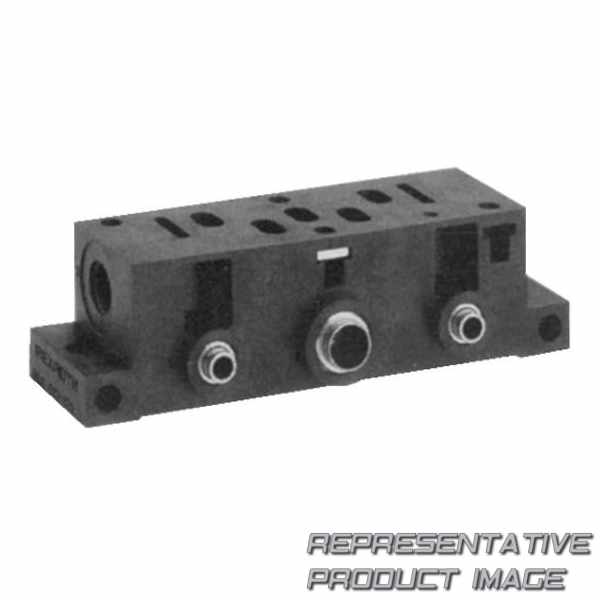

| Type | base plate |
| Max. number of valve positions | 1 | ||
| max. medium temperature | 70 °c | ||
| max. ambient temperature | 70 °c | ||
| working pressure max | 16 bar | ||
| Standards | iso 15407-1 | ||
| pilot control exhaust | with collective pilot air exhaust | ||
| direction of pneumatic port (14) | on the side | ||
| direction of pneumatic port (12) | on the side | ||
| exhaust type | ports separated | ||
| direction of pneumatic port (3,5) | on the side | ||
| direction of pneumatic port (2,4) | on the side | ||
| direction of pneumatic port (1) | on the side |
