| Material cable sheath | polyvinyl chloride | ||
| cable length l | 2.5 m | ||
| Shock resistance | 50 g / 11 ms | ||
| operational voltage ac, max. | 48 v ac | ||
| operating voltage dc, max. | 48 v dc | ||

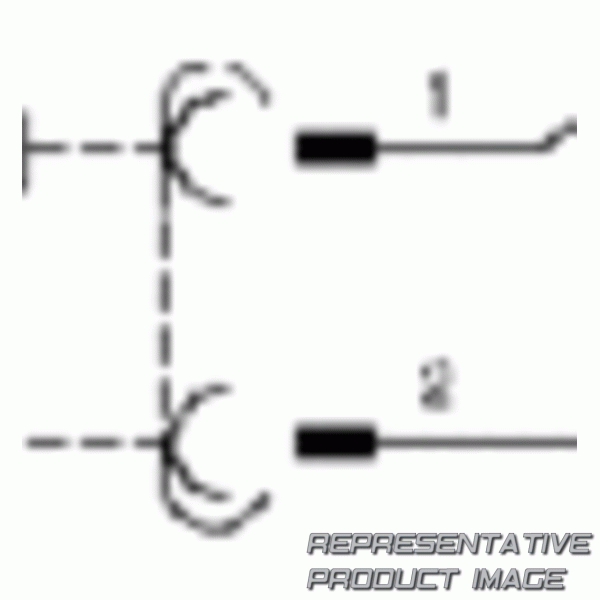

| electrical connection 2, number of poles | 2-pin | ||
| led status display | yellow | ||
| ac switching current, max. | 3 a | ||
| max. ambient temperature | 105 °c | ||
| Protection class | ip67, ip65 | ||
| type of contact | reed | ||
| Version | heat resistant |
| Housing Material | polyester amide | ||
| Vibration resistance | 35 g (50 - 2000 hz) | ||
| short circuit resistance | protected against polarity reversal | ||
| operating voltage ac, min. | 10 v ac | ||
| operating voltage dc, min. | 10 v dc | ||
| electrical connection 2, type | without wire end ferrule, tin-plated | ||
| switching point precision | ±0,1 mt | ||
| dc switching current, max. | 3 a | ||
| min. ambient temperature | -20 °c | ||
| switching capacity | 60 w / 60 va | ||
| cable | with cable | ||
| indirect mounting for series | trb, its |
