837PU-16-GRN-RL Parker Hannifin

PARKER 837PU-16-GRN-RL

Name: 837PU-16-GRN-RL PARKER
Brand: PARKER
SKU: 573544-en-gbp
Price: 121.05 GBP
Availability: InStock

£121.05 /m

25 m with 1 to 3 days delivery to United States

Specifications

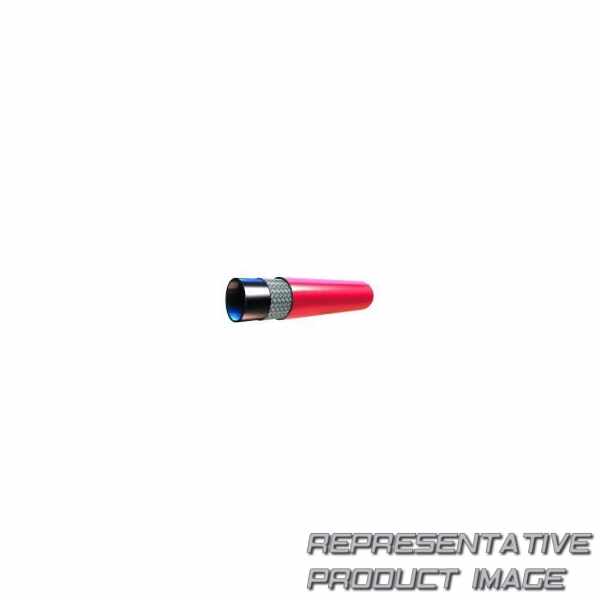

Parker's Low Pressure Push-Lok Hose 837PU-Plus has been developed with a highly abrasion resistant polyurethane cover and for a working pressure up to 1.6 MPa. The hose range is compatible with Push-Lok fittings in steel and stainless steel in series 82.

max. pressure	16 bar, 1.6 mpa, 235 psi

Weight	520g

Technical data

Color		green
maximum operating temperature		212 °f (water: 185, air: 158), 100 °c (water: 85 , air: 70)
specifications met		parker specifications
Weight		0.35 lb/ft, 0.52 kg/m
industry		industrial manufacturing equipment
Brand		parker
product type		push-lock and push-on hoses
materials of construction		rubber
vacuum pressure rating		0.51 bar, 15.06 inch-hg, 382.53 mm-hg
product style		hybrid push-lok
media		air, water-oil-emulsion, water-glycol-emulsions, coolants i.e. water-oil emulsion, water-glycol, dry air, industrial air, lubricants, water
compatible fitting		82 series
cover material		high performance polyurethane material

hose i.d. (size)		-16
hose reinforcement material		high tensile fibre braid
hose inner tube material		synthetic rubber
hose outside diameter		1.291 inch, 32.8 mm
cover color		green
maximum operating pressure		16 bar, 1.6 mpa, 235 psi
technology		fluid & gas handling
design factor		4:1
division		polymer hose division europe
minimum bend radius		7.087 inch, 180 mm
hose inside diameter		1 inch, 25.4 mm
minimum operating temperature		-40 °c
Application		high demand applications for energy chain systems & hose bundle systems
