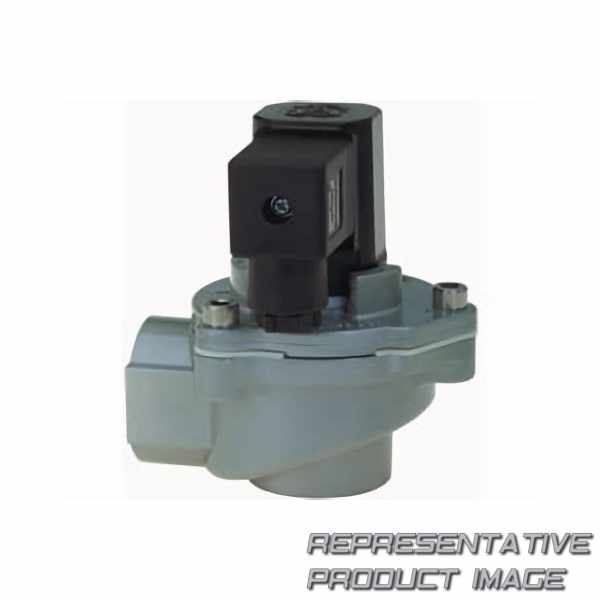

NORGREN 8296763.8171.02400 solenoid actuated diaphragm valve

Name: 8296763.8171.02400 NORGREN
Brand: NORGREN
SKU: 778649-en-gbp
Price: 597.92 GBP
Availability: SoldOut

£597.92 ~~£863.39~~ -30%

Limited stock only available on quotation

Specifications

max. pressure	0.4 ... 8 bar
supply voltage	24vdc

Seal	tpe

body		aluminium
Flow direction		fixed
kv value flow cubicmeterperhour		80 m³/h
operating pressure pressure bar min to max range		0.4 ... 8 bar
operating temperature f temperature fahrenheit min to max range		-40 ... 185 °f
orifice metric		50 mm
Protection class		en 60529 ip65
seat seal		tpe

coil code		8,171
inner parts		tpu
Medium		compressed air
operating pressure psi pressure psi min to max range		6 ... 116 psi
operating temperature temperature celsius min to max range		-40 ... 85 °c
Port size		g2
range		82,960
voltage		24vdc
