8148368 Festo

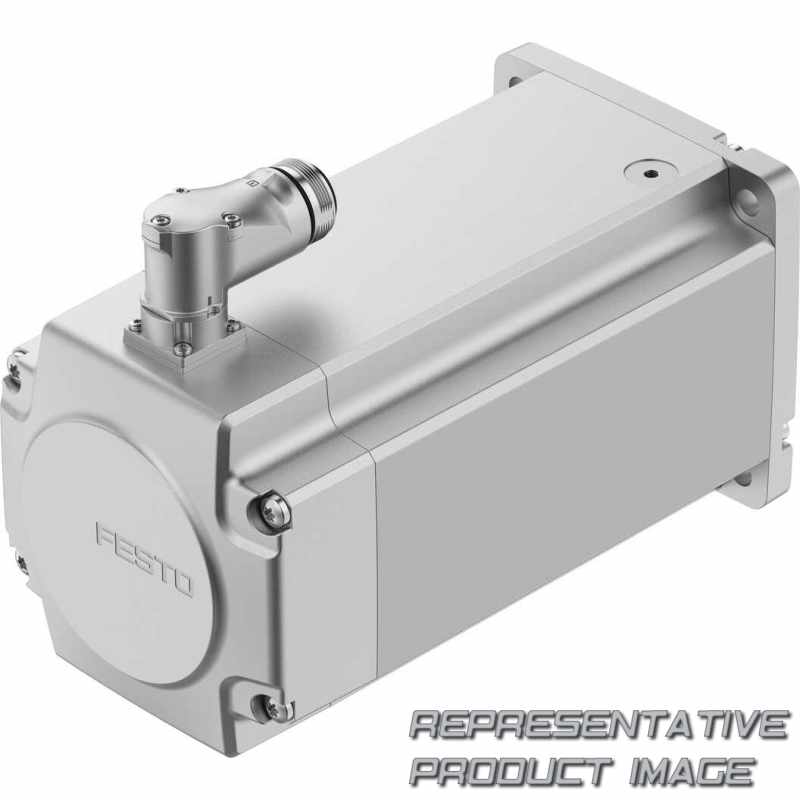

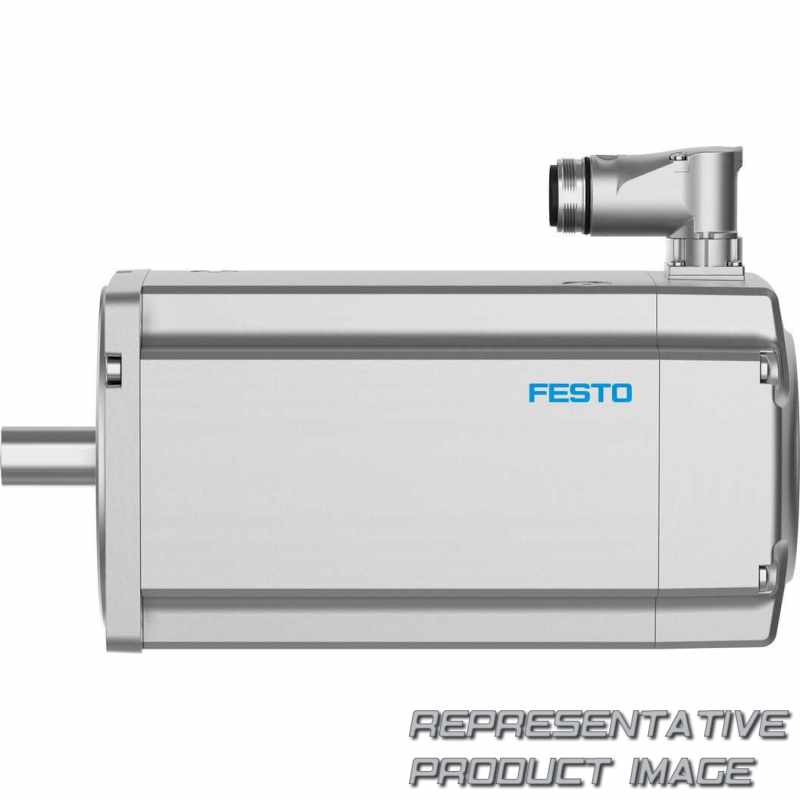

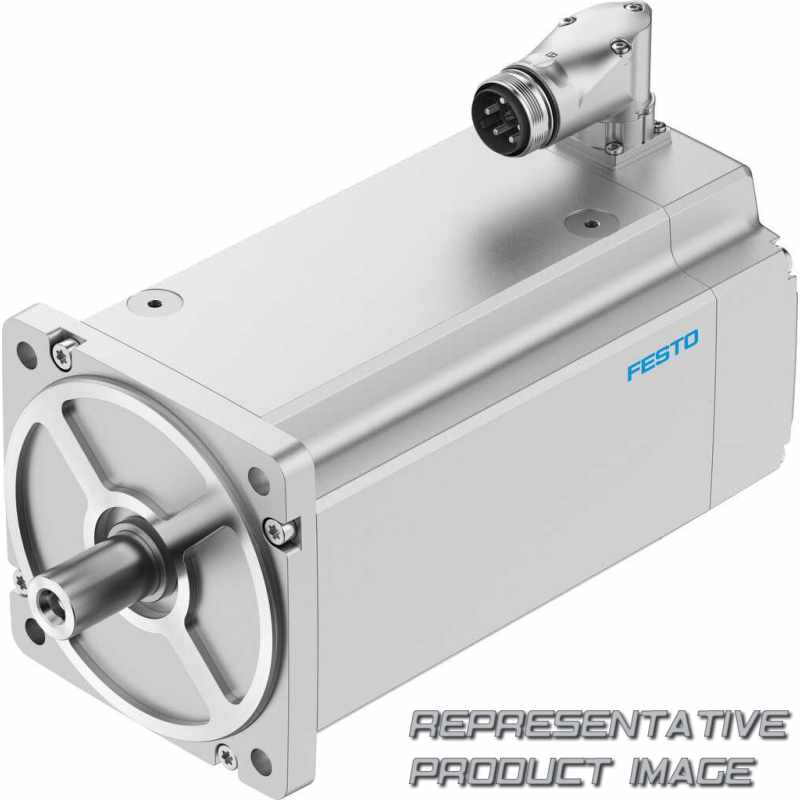

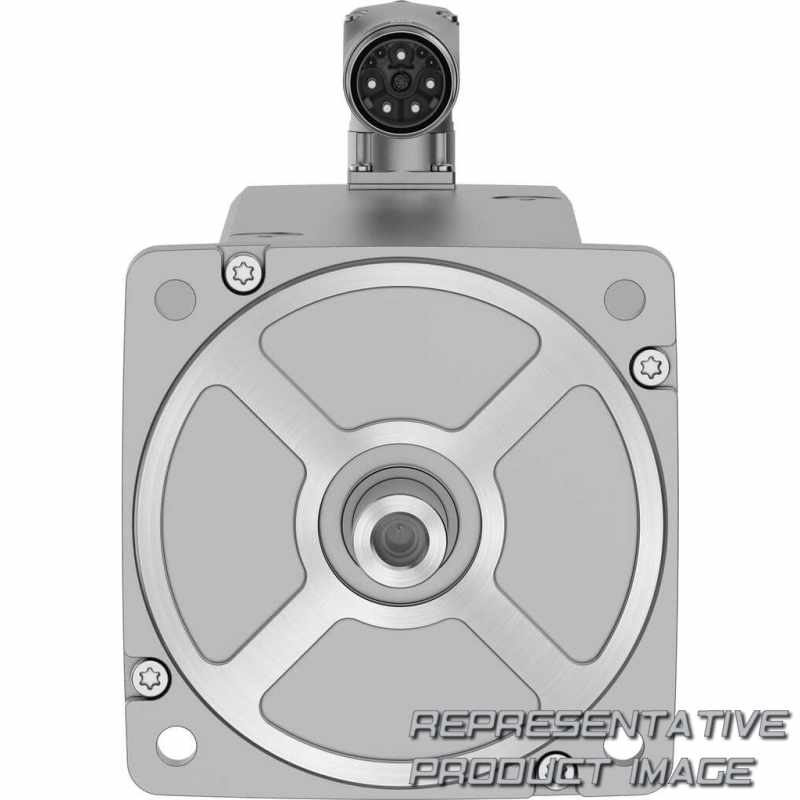

FESTO 8148368 servo motor

Name: 8148368 FESTO
Brand: FESTO
SKU: 711880-en-gbp
Price: 3864.41 GBP
Availability: SoldOut

EMMT-AS-190-M-HS-R3MY

£3,864.41 ~~£6,934.47~~ -44%

Limited stock only available on quotation

Specifications

Series (EMMT)	Servo motor
Motor type (AS)	AC synchronous
Flange size, motors [mm] (190)	190
Length (M)	Medium
Output shaft	Smooth shaft

Radial shaft seal	None
Winding (HS)	High voltage, standard
Electrical connection (R3)	Angled plug M40, rotatable
Measuring unit (MY)	Absolute multi-turn safety encoder, EnDat®
Brake	None

Technical data

Energy efficiency		ENEFF (CN) / Class 1
Mean time to failure (MTTF), subcomponent		190 years, rotor position sensor
PFHd, subcomponent		15 x 10E-9, encoder
Safety Integrity Level (SIL), subcomponent		SIL 2, Encoder
Rotor position transducer resolution		19 bit
rotor position sensor, DC operating voltage range		3,6 V ... 14 V
Rotor position sensor, encoder measuring principle		Inductive
rotor position sensor, absolute detectable revolutions		4.10
Rotor position sensor		Absolute multi-turn safety encoder
Permissible axial shaft load		500 N
Total mass moment of inertia of output		110 kgcm²
Thermal resistance		0,31 K/W
Electric time constant		39,6 ms
Winding longitudinal inductivity Ld (phase)		5,65 mH
Phase-phase winding resistance		0,285 Ohm
Standstill torque constant		3,56 Nm/A
Peak current		41,5 A
Continuous stall current		25 A
Max. mechanical speed		8.000 rpm
Nominal rotary speed		1.200 rpm
Nominal torque		59,1 Nm
Number of pole pairs		5
Nominal operating voltage DC		680 V
CE marking (see declaration of conformity)		To UK instructions for EMC To UK regulations for machines To UK RoHS instructions
Approval		RCM trademark
Vibration resistance		As per EN 60068-2-6
Corrosion resistance class CRC		0 - No corrosion stress
Pollution degree		2
Electrical connection 1, number of connections/cores		15
Electrical connection 1, connection type		Hybrid plug
Storage lifetime under nominal conditions		20.000 h
Balance quality		G 2.5
Note on degree of protection		IP21 for motor shaft without rotary shaft seal IP65 for motor shaft with rotary shaft seal IP67 for motor housing including connection components
Mounting position		optional
Temperature monitoring		Digital motor temperature transmission via EnDat® 2.2
Max. winding temperature		155 °C
Conforms to standard		IEC 60034
Storage temperature		-20 °C ... 70 °C
Max. installation height		4.000 m
Ambient temperature		-15 °C ... 40 °C

Mean time to dangerous failure (MTTFd), subcomponent		380 years, rotor position sensor
Duration of use Tm, subcomponent		20 years, rotor position sensor
Performance Level, subcomponent		Cat. 3, PLd, encoder
rotor position sensor, system accuracy of angle measurement		-65 arcsec ... 65 arcsec
rotor position sensor, position values per revolution		524.288
rotor position sensor, DC operating voltage		5 V
Rotor position encoder interface		EnDat® 22
rotor position sensor, manufacturer designation		EQI 1331
Permissible radial shaft load		2.530 N
Product weight		42.200 g
Measuring flange		450 x 450 x 30 mm, steel
Thermal time constant		70 min
Winding cross inductivity Lq (phase)		6,15 mH
Phase-phase winding inductance		12,3 mH
Voltage constant, phase-to-phase		215,2 mVmin
Motor constant		3,08 Nm/A
Nominal motor current		19,2 A
Nominal power rating of motor		7.427 W
Max. rotational speed		2.163 rpm
Peak torque		118,3 Nm
Standstill torque		76,7 Nm
Type of winding switch		Star inside
Certificate issuing authority		TÜV 968/FSP 2317.00/21
CE mark (see declaration of conformity)		To EU EMC Directive To EC Machinery Directive In accordance with EU RoHS Directive
Shock resistance		As per EN 60068-2-29 15 g/11 ms to EN 60068-2-27
LABS (PWIS) conformity		VDMA24364 zone III
Note on materials		RoHS-compliant
Electrical connection 1, connection pattern		00997380
Electrical connection 1, connector system		M40x1
Interface code, motor out		190B
Detent torque		<1.0% of the peak torque
Concentricity, coaxiality, axial runout to DIN SPEC 42955		N
Degree of protection		IP21
Motor type to EN 60034-7		IM B5 IM V1 IM V3
Rating class as per EN 60034-1		S1
Temperature class as per EN 60034-1		F
Relative air humidity		0 - 90%
Note on max. installation height		As of 1,000 m: only with derating of -1.0% per 100 m
Note on ambient temperature		Up to 80°C with derating of -1.5% per degree Celsius
