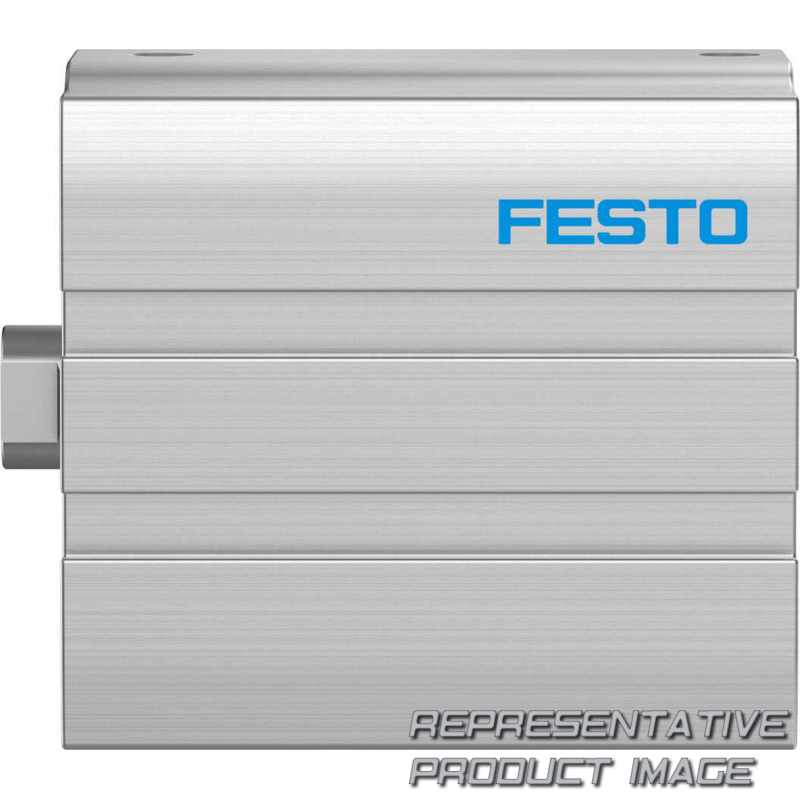

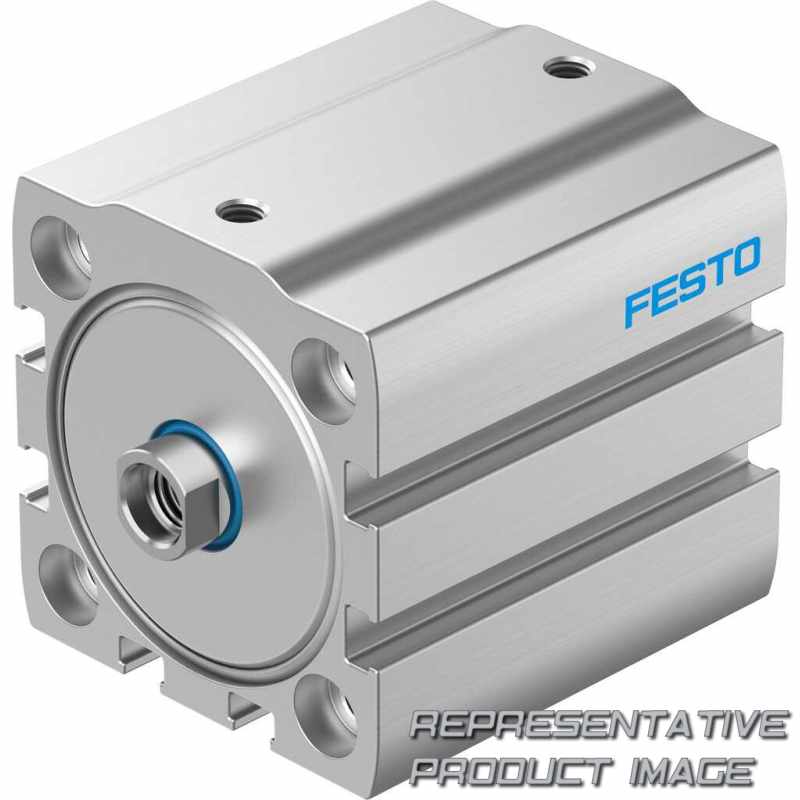

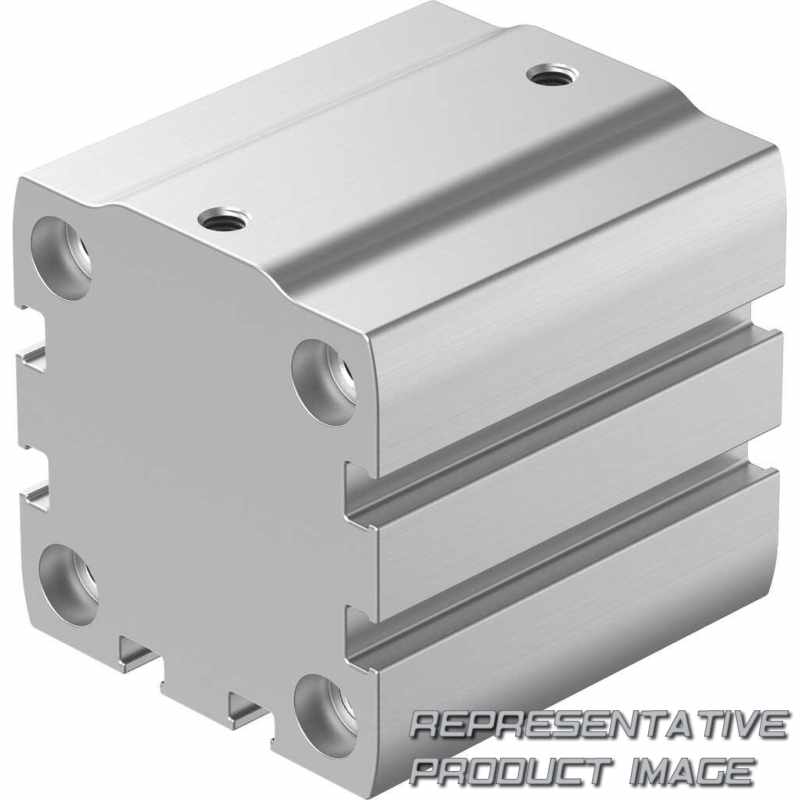

| Stroke | 5 mm | ||
| Cushioning | Elastic cushioning rings/plates at both ends | ||
| Mode of operation | Double-acting | ||
| Design | Piston Piston rod | ||
| Symbol | 00991217 | ||
| Operating pressure | 8,7 psi ... 145 psi | ||
| Material piston rod | High-alloy stainless steel | ||
| Material dynamic seals | TPE-U(PU) | ||
| Note on materials | RoHS-compliant | ||
| Type of mounting | With through-hole Via female thread | ||
| Basic weight for 0 mm stroke | 304 g | ||
| Moving mass for 0 mm stroke | 62 g | ||
| Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke | 686 N | ||
| Ambient temperature | 0 °C ... 60 °C | ||
| Suitability for the production of Li-ion batteries | Metals with more than 1% copper, zinc or nickel by mass are excluded from use. Exceptions are nickel in steel, chemically nickel-plated surfaces, printed circuit boards, cables, electrical plug connectors and coils | ||
| Corrosion resistance class CRC | 2 - Moderate corrosion stress |
| Piston diameter | 40 mm | ||
| Mounting position | optional | ||
| Piston-rod end | Female thread | ||
| Position detection | Via proximity switch | ||
| Variants | Recommended for production facilities for manufacturing of lithium-ion batteries Piston rod at one end | ||
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4] | ||
| Material housing | Anodised wrought aluminium alloy | ||
| Material cover | Anodised wrought aluminium alloy | ||
| Pneumatic connection | M5 | ||
| Additional weight per 10 mm stroke | 45 g | ||
| Additional moving mass per 10 mm stroke | 9 g | ||
| Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke | 754 N | ||
| Impact energy in end positions | 0,7 J | ||
| Cleanroom class | Class 6 according to ISO 14644-1 | ||
| LABS (PWIS) conformity | VDMA24364-B2-L | ||
| Note on operating and pilot medium | Lubricated operation possible (in which case lubricated operation will always be required) |
