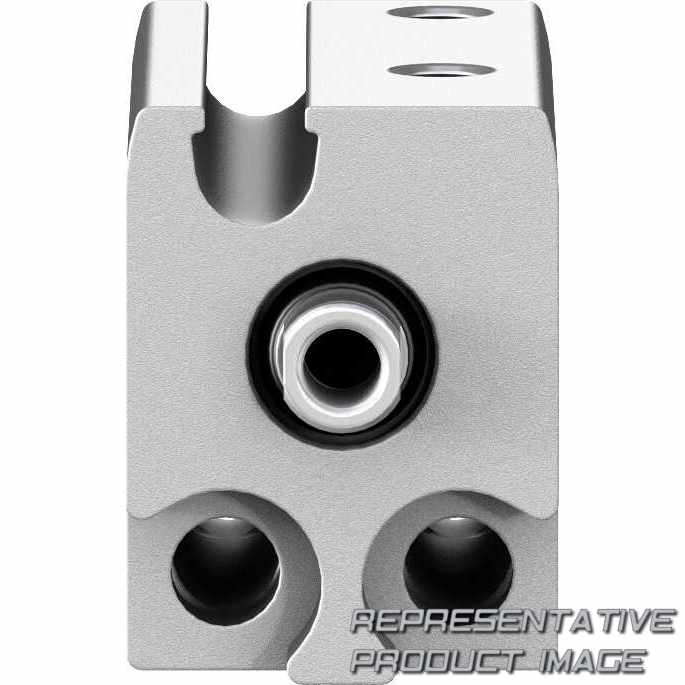

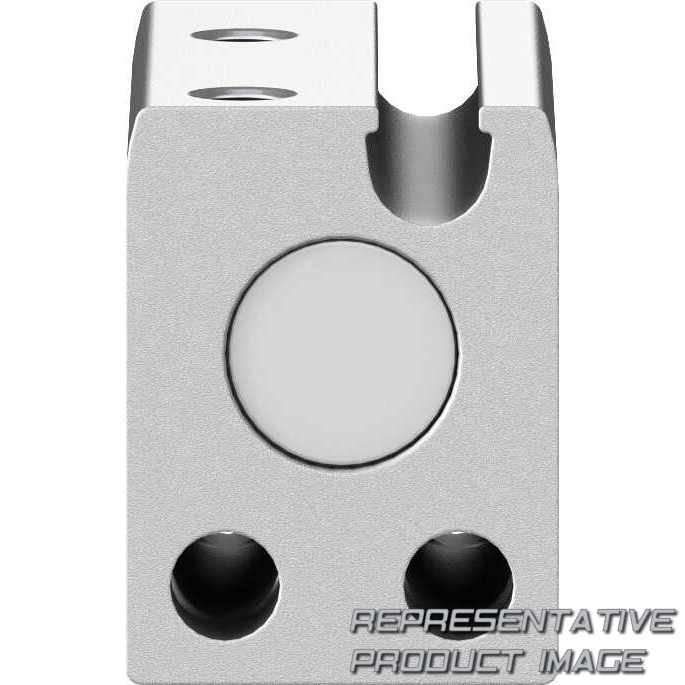

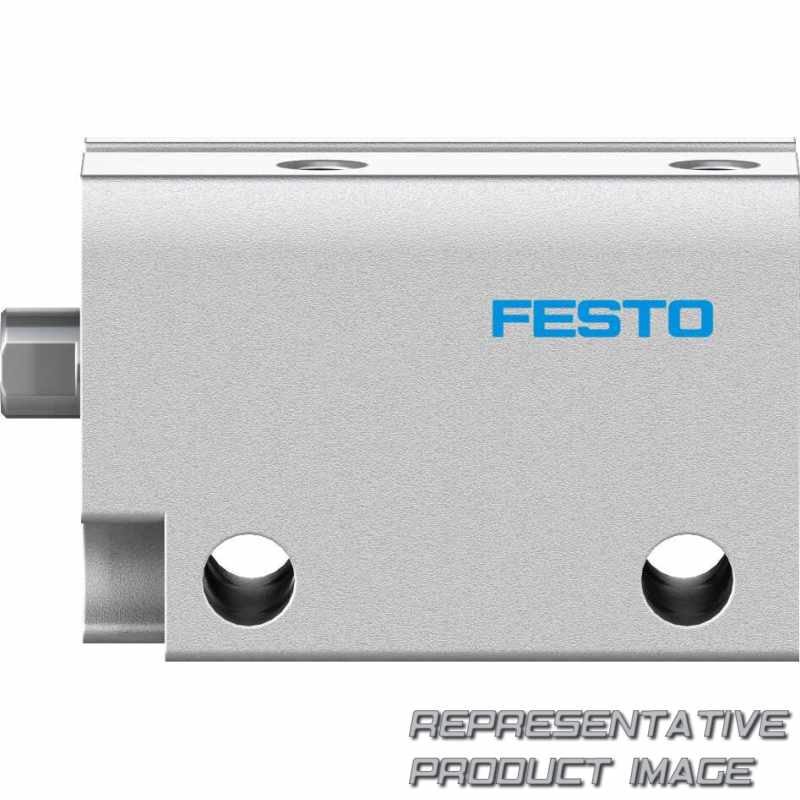

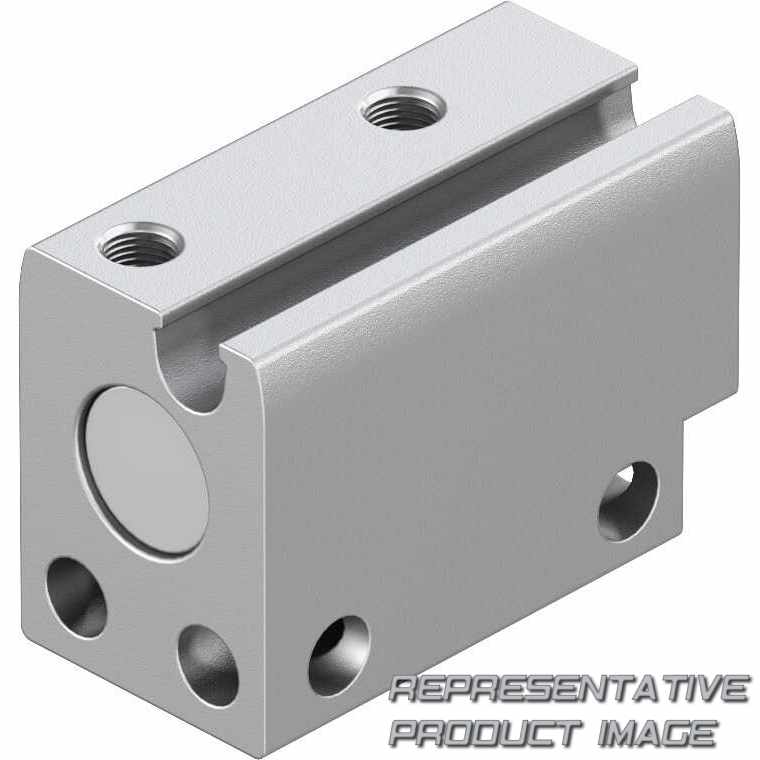

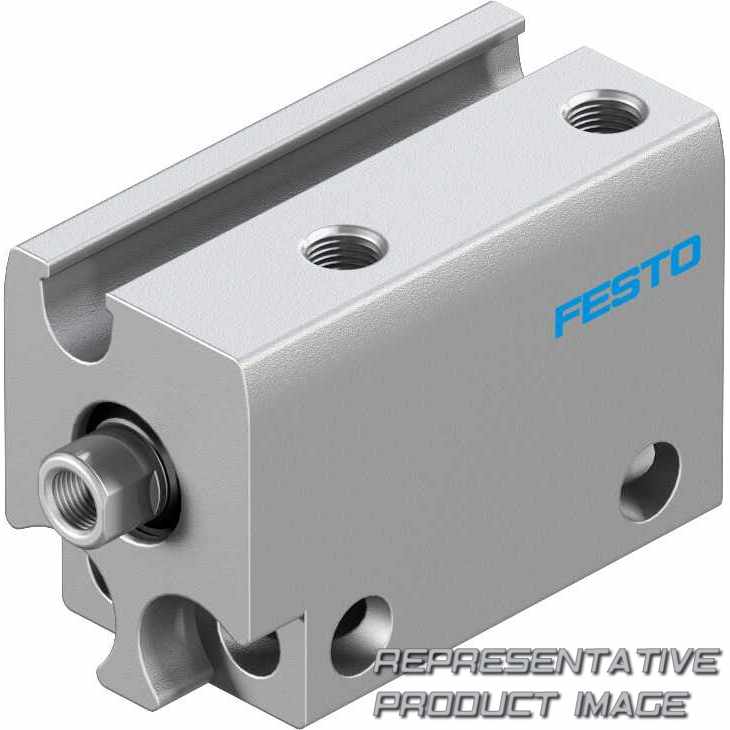

| Material piston rod | High-alloy stainless steel | ||
| Material dynamic seals | NBR TPE-U(PU) | ||
| Note on materials | RoHS-compliant | ||
| Type of mounting | With through-hole | ||
| Moving mass | 2,3 g | ||
| Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke | 9,4 N | ||
| Ambient temperature | -10 °C ... 60 °C | ||
| Suitability for the production of Li-ion batteries | Metals with more than 1% copper, zinc or nickel by mass are excluded from use. Exceptions are nickel in steel, chemically nickel-plated surfaces, printed circuit boards, cables, electrical plug connectors and coils | ||
| Corrosion resistance class CRC | 2 - Moderate corrosion stress | ||
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4] | ||
| Variants | Recommended for production facilities for manufacturing of lithium-ion batteries Piston rod at one end | ||
| Design | Piston Piston rod | ||
| Mode of operation | Double-acting | ||
| Cushioning | No cushioning | ||
| Stroke | 10 mm |
| Material housing | Anodised wrought aluminium alloy Anodised | ||
| Material cover | Wrought aluminium alloy | ||
| Pneumatic connection | M3 | ||
| Product weight | 11,9 g | ||
| Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke | 17 N | ||
| Impact energy in end positions | 0,006 J | ||
| Cleanroom class | Class 6 according to ISO 14644-1 | ||
| LABS (PWIS) conformity | VDMA24364-B2-L | ||
| Note on operating and pilot medium | Lubricated operation possible (in which case lubricated operation will always be required) | ||
| Operating pressure | 21,75 psi ... 116 psi | ||
| Symbol | 00991215 | ||
| Piston-rod end | Female thread | ||
| Mounting position | optional | ||
| Piston diameter | 6 mm |
