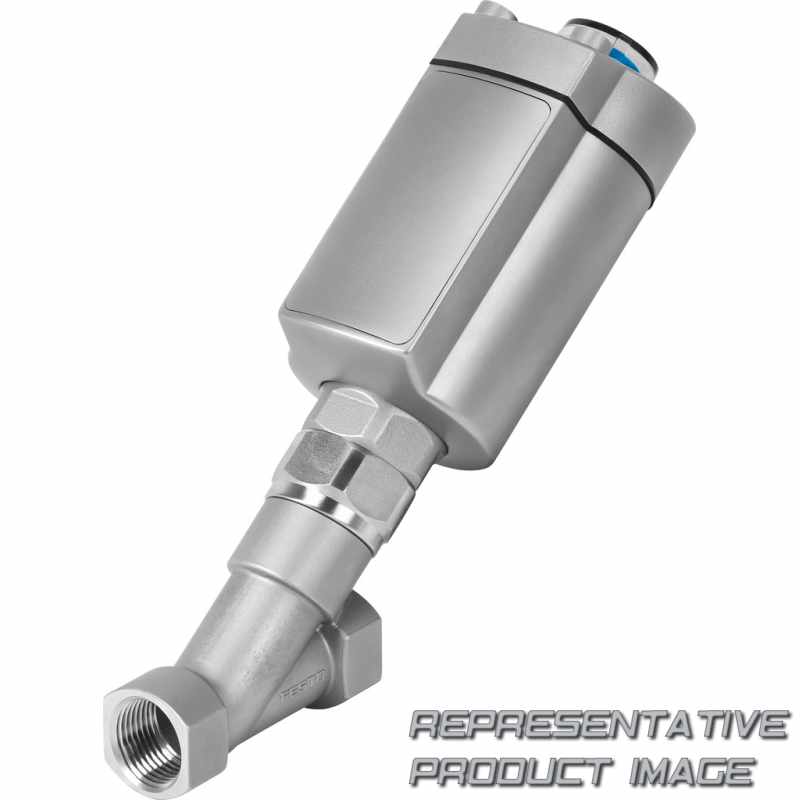

FESTO 8060514 angle seat valve

Name: 8060514 FESTO
Brand: FESTO
SKU: 756024-en-gbp
Price: 301.71 GBP
Availability: SoldOut

VZXA-A-TS6-20-M2-V13T-16-K-75-20-PR-V4

£301.71 ~~£464.93~~ -35%

Limited stock only available on quotation

Specifications

Series (VZXA)	Process valve
Flow direction (A)	Above valve seat, for gaseous media
Line connection (T)	Threaded collar
Connection standard (S6)	G thread to DIN ISO 228
Connection size (20)	DN20
Temperature of medium (M2)	-10 ... +180°C
Valve housing material (V13)	Stainless steel 1.4409
Seat seal material (T)	PTFE

Medium pressure (16)	0 ... 16 bar
Drive (K)	Piston drive
Drive size (75)	75 mm
Stroke [mm] (20)	20
Control function (PR)	Closed via reduced spring force, N/C
Drive housing material (V4)	Stainless steel 1.4408
EU certification	None

Material cover		Stainless steel casting
Degree of protection		IP65 IP67
Material number drive housing		1.44
Position detection		Via mechanical indicator
Stroke		20 mm
Probability of Failure on Demand (PFD)		0,001
Certificate issuing authority		CRN0C20829.5C TÜV 968/V 1039.01/20
CE mark (see declaration of conformity)		To EC Machinery Directive
Product weight		3.155 g
Material spindle seal		PTFE
Material number process valve housing		1.44
Note on materials		Contains paint-wetting impairment substances RoHS-compliant
Flow rate Kv		14,5 m³/h
Media temperature		-10 °C ... 180 °C
Operating medium		Compressed air to ISO 8573-1:2010 [7:4:4]
Direction of flow		Above valve seat, for gaseous media

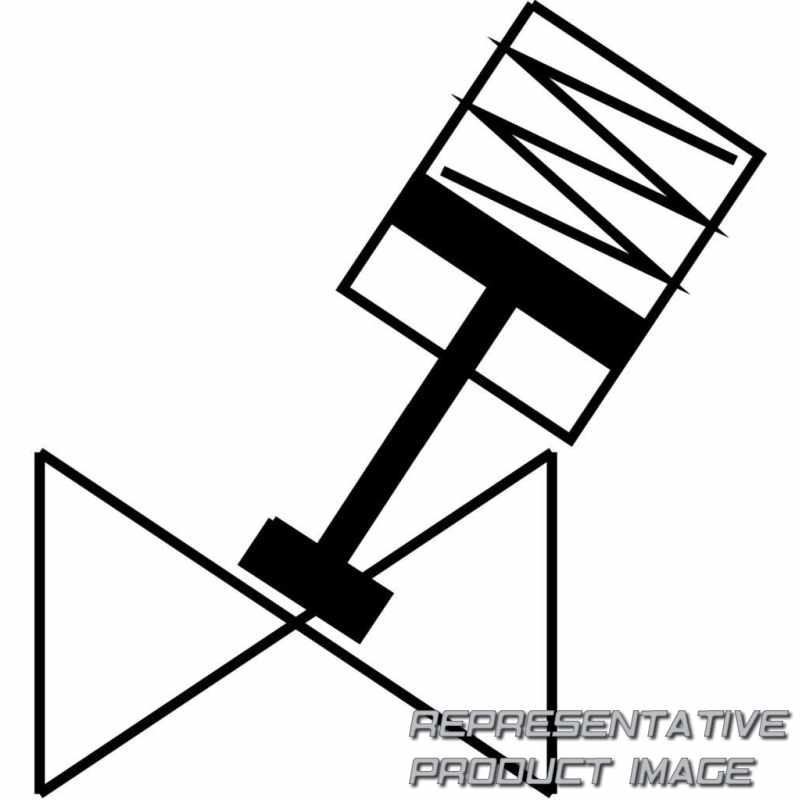

Symbol		00995586
Pneumatic connection		Female thread G1/8
Type of reset		Mechanical spring
Flow direction		Non-reversible
Line connection		Threaded coupling G3/4 to DIN ISO 228
Mounting position		optional
Design		Poppet valve with piston drive

Material piston rod		High-alloy stainless steel
Storage temperature		-10 °C ... 60 °C
Material drive housing		Stainless steel casting
Control function		Closed via reduced spring force, N/C
Size of drive		75 mm
Safety Integrity Level (SIL)		SIL 2
Explosion protection		Zone 1 (ATEX) Zone 2 (ATEX) Zone 21 (ATEX) Zone 22 (ATEX)
Approval		CRN
Material seat seal		PTFE
Material seals		FPM
Material process valve housing		Stainless steel casting
Outdoor applications		Weather-protected application areas Class C1 based on IEC 60654-1
Ambient temperature		0 °C ... 60 °C
Max. viscosity		600 mm²/s
Control of medium		On/off operation
Medium		Vapour Inert gases Filtered compressed air, grade of filtration 200 µm
Operating pressure		72,5 psi ... 145 psi
Type of piloting		Externally controlled
Medium pressure		0 bar ... 16 bar
Valve function		2/2
Type of mounting		In-line installation
Type of actuation		Pneumatic
