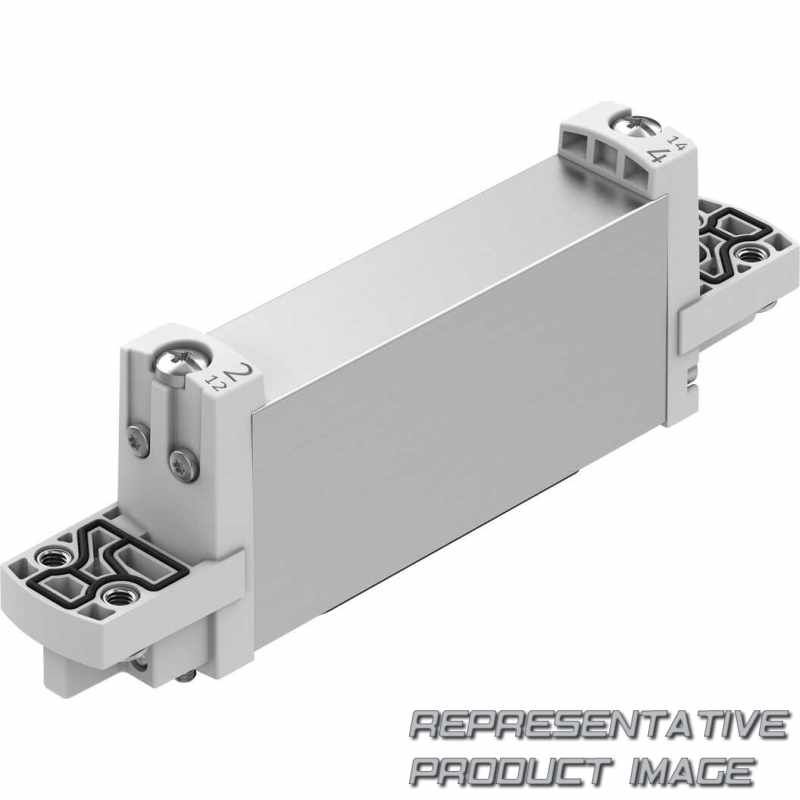

FESTO 8033543 solenoid valve

Name: 8033543 FESTO
Brand: FESTO
SKU: 713451-en-gbp
Price: 39.06 GBP
Availability: InStock

VUVG-B14-B52-Z-F-P1

£39.06 ~~£66.09~~ -40%

available with 3 to 7 days delivery to United States

Specifications

Series (VUVG)	Solenoid valve
Directional control valve type (B)	Sub-base valve
Design principle	Piston spool
Size (14)	Size 14
Valve function (B52)	5/2-way valve, double solenoid/bistable
Reset method for monostable/single solenoid valves	None
Pilot air (Z)	External

Manual override	None
Pneumatic connection (F)	Flange/sub-base
Exhaust	No fitting
Nominal operating voltage	None
Electrical connection (P1)	Interface for pilot valve (CNOMO small)
Circuitry	None

Material housing		Wrought aluminium alloy
Note on materials		RoHS-compliant
Type of mounting		On manifold rail
Product weight		65 g
Pilot medium		Compressed air to ISO 8573-1:2010 [7:4:4]
LABS (PWIS) conformity		VDMA24364-B1/B2-L
Shock resistance		Shock test with severity level 2 to FN 942017-5 and EN 60068-2-27
Note on operating and pilot medium		Lubricated operation possible (in which case lubricated operation will always be required)
Max. negative test pulse with 1 signal		900 µs
Duty cycle		100%
Suitability for vacuum		yes
lap		Positive overlap
Pilot air supply		External
Mounting position		optional
Exhaust-air function		With flow control option
Degree of protection		IP65 With electric pilot valve and plug socket
Approval		c UL us - Recognized (OL)
Operating pressure		-0,9 bar ... 10 bar
Standard nominal flow rate		570 l/min ... 680 l/min
Type of actuation		Electric

Material seals		HNBR NBR
Pilot control interface		To ISO 15218
Electrical connection		Via electric pilot valve
Ambient temperature		-5 °C ... 60 °C
Media temperature		-5 °C ... 60 °C
Corrosion resistance class CRC		2 - Moderate corrosion stress
Vibration resistance		Transport application test with severity level 2 to FN 942017-4 and EN 60068-2-6
Operating medium		Compressed air to ISO 8573-1:2010 [7:4:4]
Max. positive test pulse with 0 signal		700 µs
Switching time reversal		12 ms
Pilot pressure		1,5 bar ... 8 bar
Symbol		00991125
Type of piloting		Pilot actuated
Sealing principle		Soft
Nominal size		5,6 mm
Certificate issuing authority		UL MH19482
Design		Piston gate valve
pneumatic working port		Flange
Valve size		14 mm
Valve function		5/2 double solenoid
