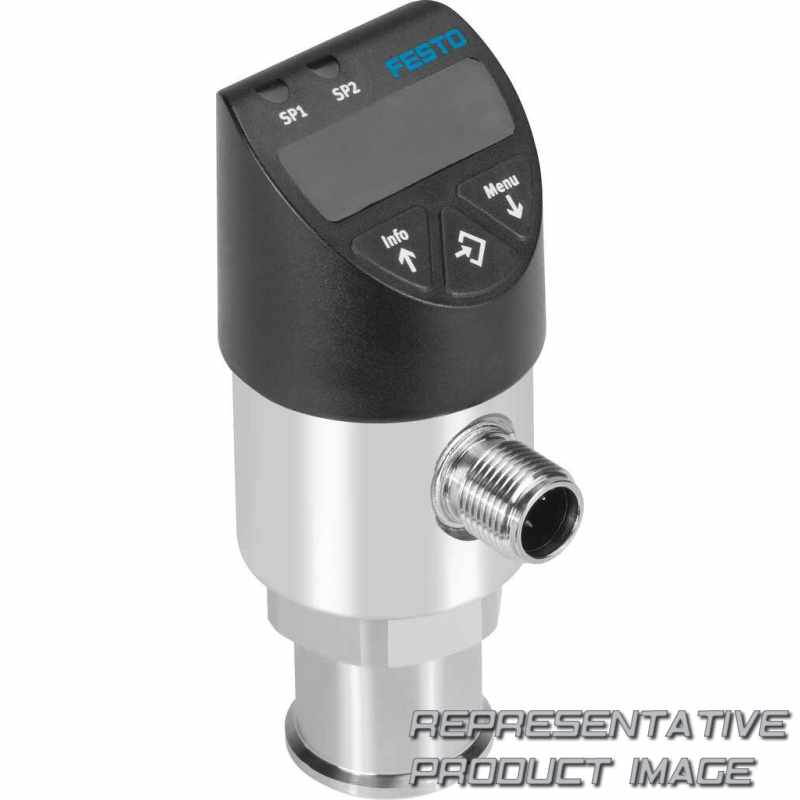

FESTO 8022820 pressure sensor

Name: 8022820 FESTO
Brand: FESTO
SKU: 756162-en-gbp
Price: 307.1 GBP
Availability: InStock

SPAW-P100R-G14F-2NA-M12

£307.10

available with 3 to 7 days delivery to United States

Specifications

LABS (PWIS) conformity		VDMA24364 zone III
Degree of protection		IP65 IP67
Setting range threshold value		0,5 % ... 100 %
Setting options		Via display and keys
Displayable units		MPa bar kPa kg/cm² psi
Material in contact with the medium		High-alloy stainless steel
Product weight		230 g
Type of mounting		Via female thread With accessories
Electrical connection 1, type of mounting		Screw-type lock
Electrical connection 1, connector system		M12x1, A-coded to EN 61076-2-101
Reverse polarity protection		For operating voltage
Short circuit current rating		yes
Analogue output		4 - 20 mA
Switching element function		Switchable
Switching output		2xNPN
Accuracy in ± % FS		1 %FS
Media temperature		-20 °C ... 85 °C
Max. overload pressure		200 bar
Start value for pressure measuring range		0 bar
Measured variable		Relative pressure
CE marking (see declaration of conformity)		To UK instructions for EMC To UK RoHS instructions
Approval		RCM trademark c UL us listed (OL)

Corrosion resistance class CRC		4 - Very high corrosion stress
Setting range hysteresis		0,5 % ... 99,5 %
Protection against tampering		PIN code
Switching status indication		Red LED
Display type		4-place alphanumeric LED indicator
Material housing		ABS High-alloy stainless steel
Pneumatic connection		Female thread G1/4
Electrical connection 1, connection pattern		00995383
Electrical connection 1, number of connections/cores		5
Electrical connection 1, connection type		Plugs
Operational voltage range DC		15 V ... 35 V
Rise time		3 ms
Max. output current		250 mA
Switching function		Freely programmable
Repetition accuracy in ± %FS		0,15 %FS
Ambient temperature		0 °C ... 80 °C
Operating medium		Compressed air to ISO 8573-1:2010 [-:-:-] Liquid media Gaseous media
End value for pressure measuring range		100 bar
Measurement method		Metal thin-film pressure sensor
Note on materials		RoHS-compliant
CE mark (see declaration of conformity)		To EU EMC Directive In accordance with EU RoHS Directive

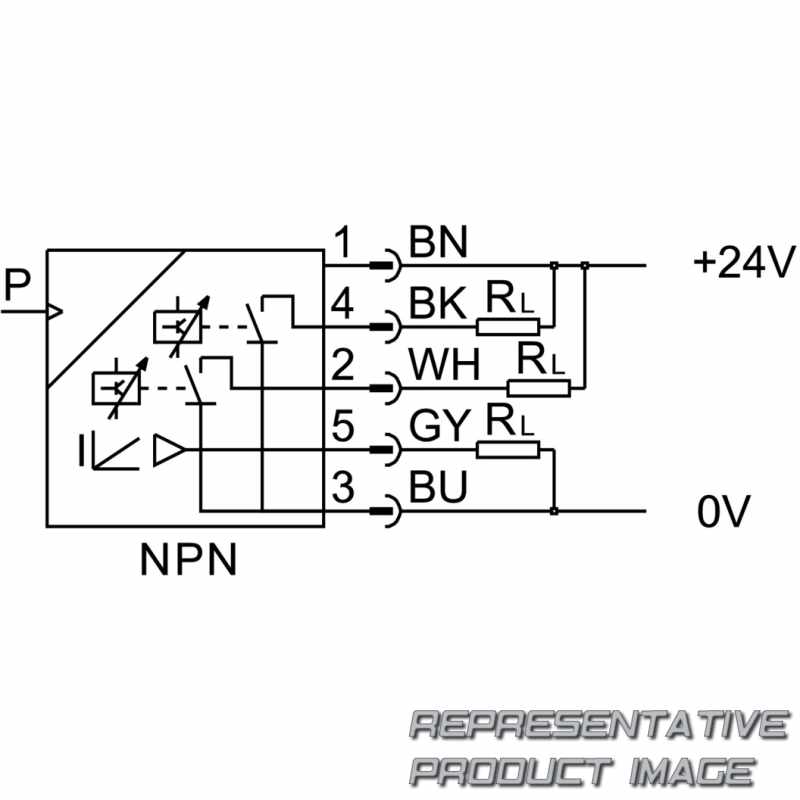

Symbol		00995379
