797TC-8 Parker Hannifin

PARKER 797TC-8

Name: 797TC-8 PARKER
Brand: PARKER
SKU: 578047-en-gbp
Price: 97.33 GBP
Availability: InStock

£97.33 /m ~~£158.17~~ /m -38%

50 m with 1 to 3 days delivery to United States

Specifications

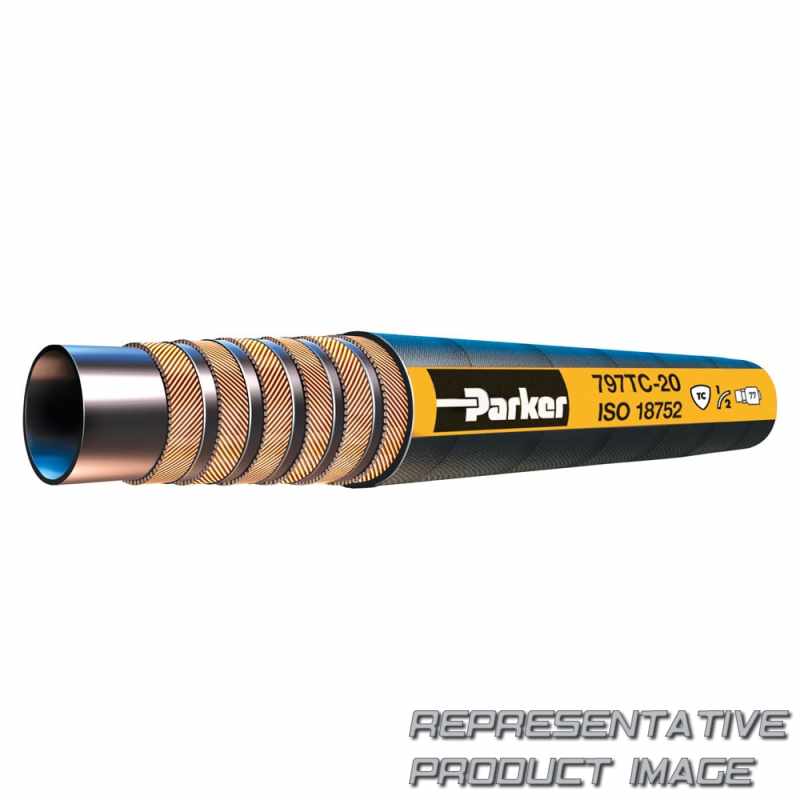

The 797 GlobalCore hose is a 6,000 PSI hydraulic constant working pressure hose designed with Compact Spiral Technology to deliver consistency and reliability.

max. pressure	6000 psi, 42 mpa

Weight	670g

Technical data

Application		petroleum base hydraulic fluids & lubricating oils
maximum operating temperature		257 °f, 125 °c
compatible fitting		77 series
hose cover type		toughcover
minimum operating temperature		-40 °c, -40 °f
hose inside diameter		1/2 inch, 12.5 mm
hose outside diameter		0.83 inch, 21.1 mm
hose inner tube material		proprietary synthetic rubber
cover material		synthetic rubber abrasion resistant

minimum bend radius		4 inch, 100 mm
specifications met		iso 18752
hose i.d. (size)		-8
Weight		0.45 lb/ft, 0.67 kg/m
media		hydraulic fluids, lubricants
nominal hose inside diameter		12
maximum operating pressure		6000 psi, 42 mpa
hose reinforcement material		4 or 6 spiral steel wires
cover color		black
