| Brand | NTN | ||

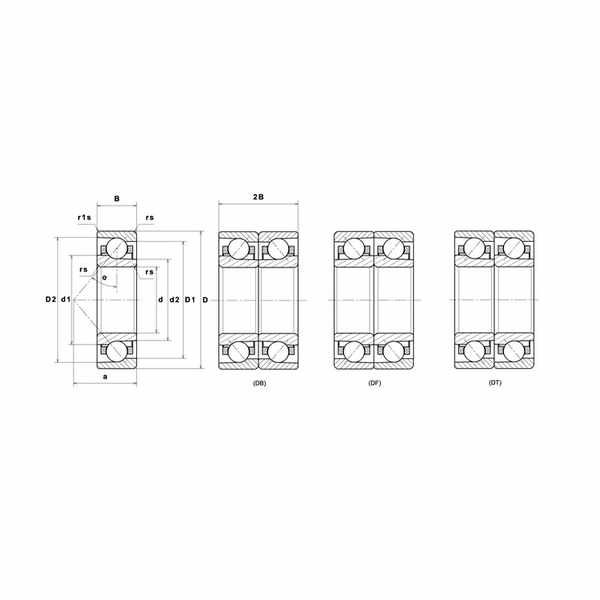

| D2 - Inner diameter outer ring | 142,6 mm | ||
| α - Contact angle | 25 ° | ||
| r1s - Min fillet radius | 0,6 mm | ||
| f0 - Coefficient | 16.80 | ||
| Nlim - Grease lubrication limit speed | 7800 tr/min | ||
| Preload value | 0,53 kN | ||
| Radial rigidity | 625 N/µm | ||
| Tmax - Max operating temperature | 120 °C | ||
| BPFI - Characteristic inner ring frequency | 15,703 Hz | ||
| BSF - Characteristic rolling element frequency | 10,848 Hz | ||

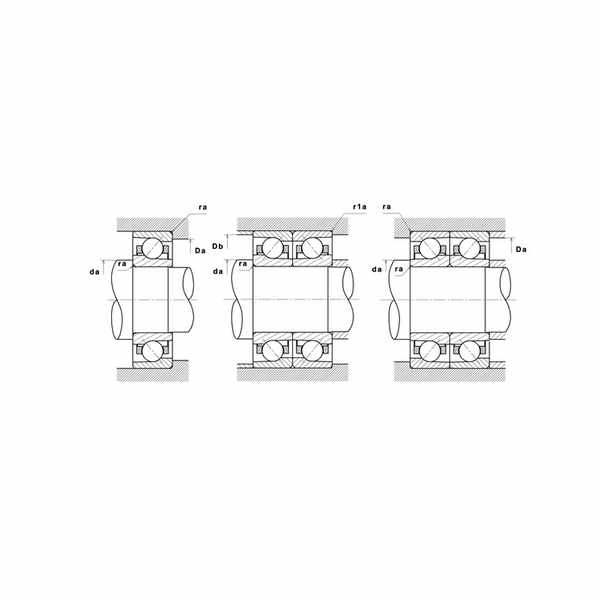

| Da max - Max shoulder diameter OR | 143 mm | ||
| r1a - Max fillet radius | 0,6 mm |
| D1 - Inner diameter outer ring | 136,4 mm | ||
| a - Charge load application point | 40,4 mm | ||
| rs - Min fillet radius | 1,1 mm | ||
| C0 - Static load | 61 kN | ||
| Nlim - Oil lubrication limit speed | 12600 tr/min | ||
| Preload level | GN | ||
| Axial rigidity | 290,3 N/µm | ||
| Tmin - Min operating temperature | -20 °C | ||
| BPFO - Characteristic outer ring frequency | 13,297 Hz | ||
| FTF - Characteristic cage frequency | 0,459 Hz | ||
| da min - Min shoulder diameter IR | 117 mm | ||
| Db max - Max OR shoulder diameter | 145,5 mm | ||
| ra max - Max shaft & housing fillet radius | 1 mm |
