| pumps | aafrbac23ds2ttaec0aa00a0 00d | ||
| input shaft rotation | r : right hand rotation (cw) | ||
| charge pump | 2 : 13.8 cm3/r [.84 in3/r] with 1.3125-12 un-2b sae o-ring port for suction inlet (s) | ||
| auxiliary port size and location | d : .750-16 unf-2b sae o-ring port - left (c1) & right (c2) sides (housing), left side plugged | ||
| special control options | 0 : no special control options | ||
| design code | d : d | ||
| main ports size and location | 2 | ||
| relief valve setting for main port b | t | ||
| control assembly | ec | ||
| control servo orifice (s1 and s2) | a | ||
| special features | 00 | ||
| auxiliary mounting features (rear) | c |

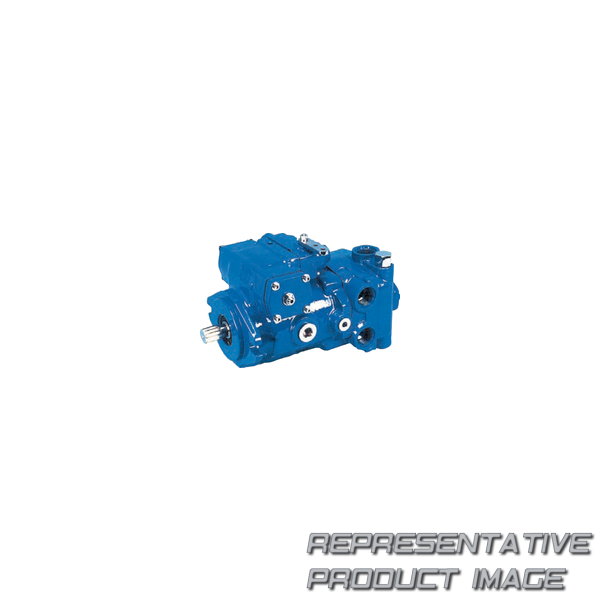

| code title | aaf : 40.6 cm3/r [2.48 in3/r] servo controlled variable displacement pump (rear tandem) | ||
| input shaft | b : 41 tooth 48/96 ext, dia 22.22 [.875], shaft ext 24.4 [.96] | ||
| charge pump relief setting and routing | 3 : 17.24-20.68 bar [250-300 lbf/in2] relieved to case | ||
| destroke valve | 0 : not required | ||
| identification | 0 : standard | ||
| drain port size and location | s | ||
| relief valve setting for main port a | t | ||
| Additional functions | a | ||
| control supply orifice (p) | a | ||
| paint | 0a | ||
| output shaft | a |
