| design code | b : compensator upgrade | ||
| paint | 0a : primer per spec 209-13a | ||
| maximum displacement option | 0 : standard displacement (as given in code title) | ||
| drain port size & location | b : .875-14 unf-2b sae o-ring port - right side | ||
| compensator special features | 0 : top mounted compensator assy, no special features | ||
| pressure compensator setting | 01 : 206.8-213.7 bar [3000-3100 lbf/in2] | ||
| input shaft rotation | l : left-hand rotation (ccw) | ||
| pumps | aawlaa01010aba0000a0b |
| identification | 0 : standard | ||
| special features | 00 : no special features | ||
| auxiliary (rear) mounting features | a : [2-bolt a] sae flange series 82-2 with a 9 tooth 16/32 ext spline | ||
| main port size & location | a : side ports; pressure - 1.00 sae 4-bolt split flange port standard pressure series (code 61); suction - 2.00 sae 4-bolt split flange port standard pressure series (code 61) | ||
| flow compensator setting | 01 : 13.10-14.47 bar [190-210 lbf/in2] | ||
| input shaft | aa : 14 tooth 12/24 spline, shaft ext 55.6 [2.19] | ||

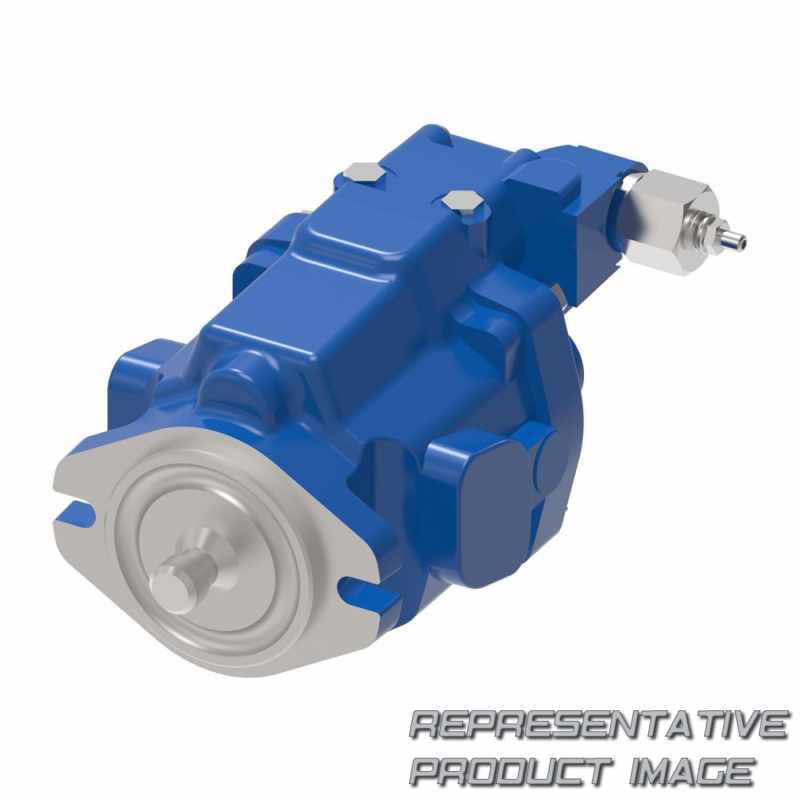

| code title | aaw : 69 cm3/r [4.21 in3/r] pressure compensated/ pressure flow compensated piston pump |
