| pumps | aahlaf01090ag00000a0a | ||
| rotation | l : left-hand rotation (ccw) | ||
| pressure compensator setting | 01 : 206.8-213.7 bar [3000-3100 lbf/in2] | ||
| compensator special features | 0 : no special features | ||
| drain port size & location | g : .875-14 unf-2b sae o-ring port - right side | ||
| maximum displacement option | 0 : standard displacement (as given in code title) | ||
| paint | 0a : primer per spec 209-13a | ||
| design code | a : a |

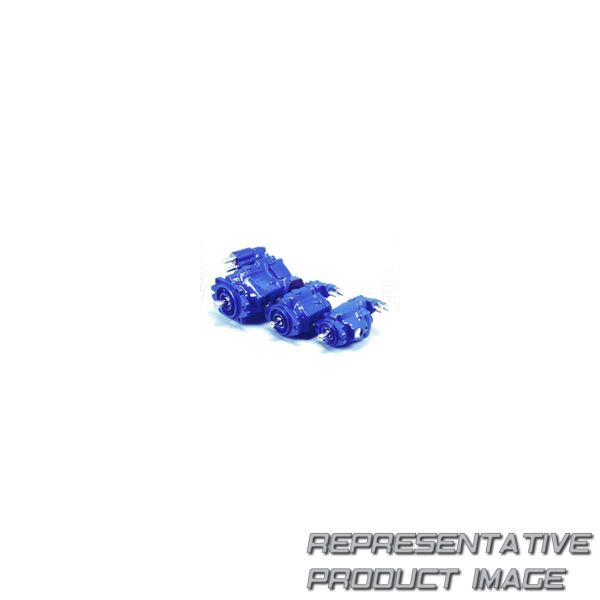

| code title | aah : 45.4 cm3/r [2.77 in3/r] pressure compensated / pressure flow compensated piston pump | ||
| input shaft | af : 13 tooth 16/32 spline, shaft extension 41.1 [1.62] | ||
| flow compensator setting | 09 : 26.89-28.27 bar [390-410 lbf/in2] | ||
| main ports size & location | a : rear ports; suction - 1.625-12 un-2b sae o-ring port; pressure - 1.3125-12 un-2b sae o-ring port | ||
| auxiliary (rear) mounting features | 0 : no auxiliary mounting features | ||
| special features | 00 : no special features | ||
| identification | 0 : standard |
