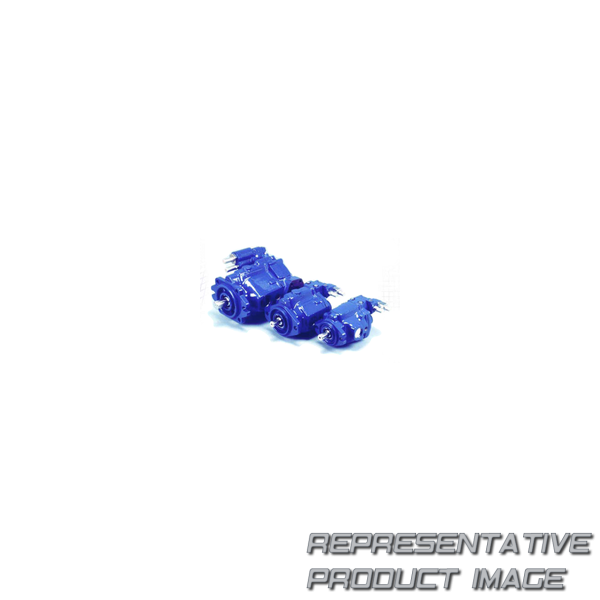

| pumps | 2.32 pfc piston pump | ||
| rotation | r : right-hand rotation (cw) | ||
| pressure compensator setting | 01 : 206.8-213.7 bar [3000-3100 lbf/in2] | ||
| compensator special features | 0 : no special features | ||
| drain port size & location | v : .875-14 unf-2b sae o-ring port - right side and left side, left side plugged | ||
| maximum displacement option | 0 : standard displacement (as given in code title) | ||
| paint | 0b : black per spec 209-13b | ||
| design code | a : a |
| code title | aag : 38 cm3/r [2.32 in3/r] pressure compensated / pressure flow compensated piston pump | ||
| input shaft | af : 13 tooth 16/32 spline, shaft extension 41.1 [1.62] | ||
| flow compensator setting | 00 : no flow compensator setting | ||
| main ports size & location | a : rear ports; suction - 1.625-12 un-2b sae o-ring port; pressure - 1.3125-12 un-2b sae o-ring port | ||
| auxiliary (rear) mounting features | 0 : no auxiliary mounting features | ||
| special features | af : viton shaft seal | ||
| identification | 0 : standard |
