| Packaging | D | ||
| Recommended For | Hydraulic oil lines, anti-freeze solutions or water. Meets or exceeds requirements of SAE 100R3. | ||
| Standard Industry Specification | SAE 100R3 | ||

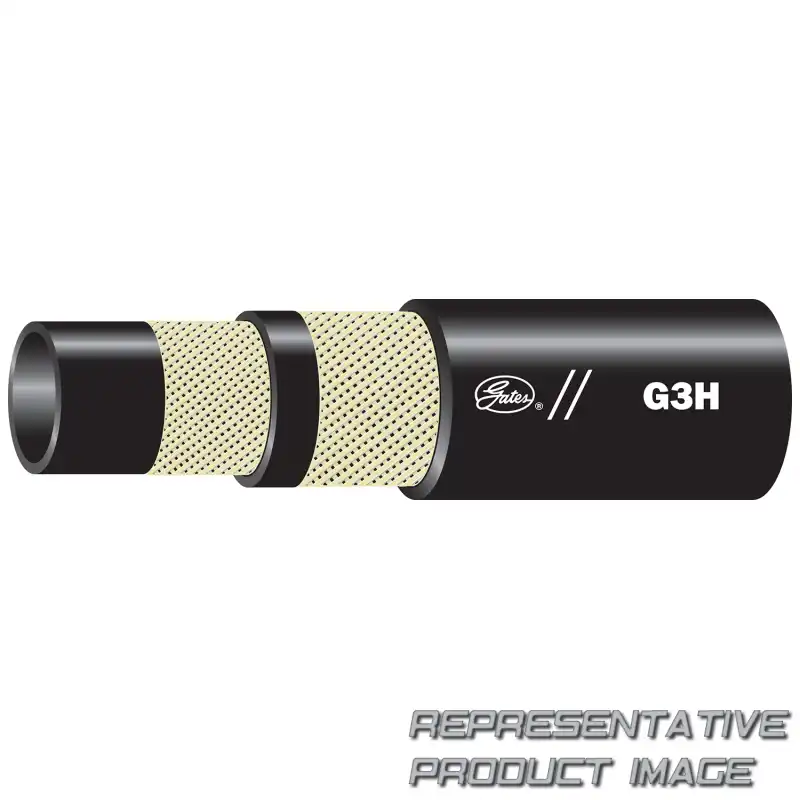

| Construction: Reinforcement | 2FB | ||
| Reinforcement | Two fiber braids. | ||
| Use | Transfer | ||
| Specifications | Minimum Burst Pressure (Bar): 315 | ||
| Outside Diameter (in) | 0.75 | ||
| Inside Diameter (mm) | 10 | ||
| Hose Outside Diameter (in) | 0.75 | ||
| Min. Burst Pressure (psi) | 4,500 | ||
| Minimum Bend Radius (in) | 4 | ||
| Vacuum (In. Hg) | 710 | ||
| Product # | 3319-00087 |
| Weight (lbs.) | 0.22 | ||
| Meets These Agency Specifications | SAE - Society of Automotive Engineers | ||
| Construction: Tube | NBR | ||
| Tube | Black, synthetic rubber (Nitrile - Type C). See Hose Stock Characteristics. | ||
| Cover | CR | ||
| Coupling Recommendation | (See Crimp Data Manual 428-7365 or E-Crimp), GLX® Couplings (-8, -12, -16, and -20) (G44) Section L, MegaCrimp® Couplings (-4, -6, -8 and -10) (G25) Section G | ||
| Outside Diameter (mm) | 19.10 | ||
| Temperature Range | -40/135 | ||
| Inside Diameter (in) | 3/8 | ||
| Hose Inside Diameter (in) | 0.38 | ||
| Minimum Bend Radius (mm) | 100 | ||
| Continuous Operating Temperature Range | -40°F to +275°F | ||
| UPC | 072053226546 | ||
| Part # | 6G3H |
