| connection 1 thread size (metric) | g1/4 | ||
| connection 1 thread size | g1/4 | ||
| connection 2 tube outside diameter | 10 | ||
| body material | stainless steel 316l | ||
| Weight | 0.018 kg | ||
| industry application | industrial fluids, beverage process, inert gases, cooling systems, food process | ||
| maximum operating temperature | 95 °c | ||
| quantity per box | 10 | ||
| maximum operating pressure | 16 bar | ||
| maximum continuous vacuum pressure | 755 |
| connection 1 type | bspp | ||
| shape | straight fittings with stainless steel adaptor | ||
| connection 2 tube o.d. (mm) | 10 | ||

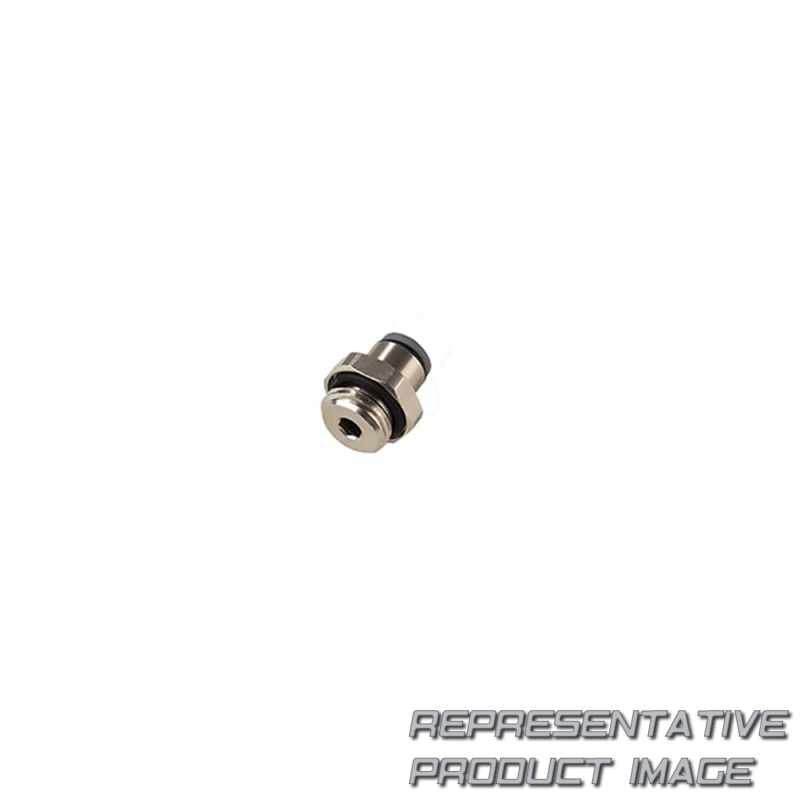

| product type | stud fittings with stainless steel adaptor | ||
| specification | di:2002/95/ec (rohs), 2011/65/ec, rg:1935/2004/ec, rg:1907/2006 (reach), fda:21 cfr | ||
| gripping ring material | stainless steel | ||
| media | water, beverages, industrial fluids: stainless steel threads. industrial fluids: fda chemical nickel-plated brass threads | ||
| minimum operating temperature | -10 °c | ||
| o-ring material | epdm |
