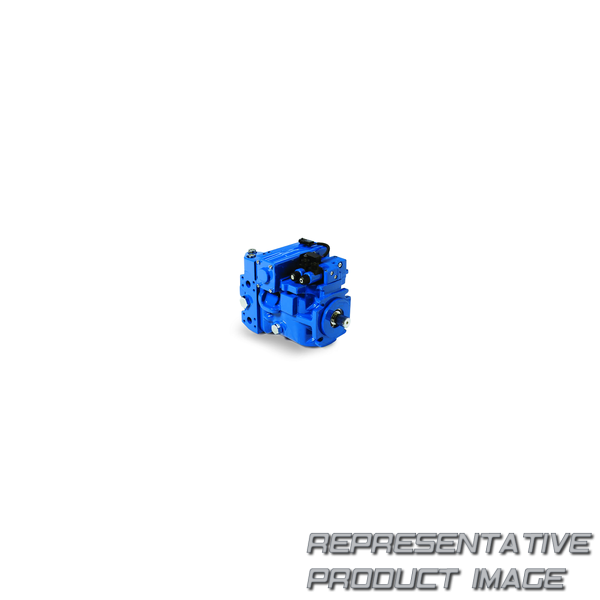

| pumps | acl10523r0attrr00ma0gg03 m0a000a | ||
| displacement | 105 : 105;4 cm3/r [6.431 in3/r] at 18 deg | ||
| input rotation | r : clockwise (right hand) | ||
| main ports - (includes gage ports) | a : 25,4 [1.00] - code 62 per sae j518 (opposite side ports) | ||
| high press relief valve setting port b | t : 414 bar [6000 lbf/in2] with 2 bar [29 lbf/in2] check valve spring | ||
| press override setting port b | r : 345 bar [5000 lbf/in2] adjustable range 310-414 bar [4500-6000 lbf/in2] | ||
| control | ma : manual displacement control | ||
| control orifice lower servo (s1) | g : 1;45 [.057] diameter | ||
| control special features | 0 : no control special features | ||
| auxiliary mounting | m : c-pad, 4 bolt mount, no shaft seal, 14 tooth 12/24 pitch spline with additional o-ring(charge pump cover) | ||
| charge pressure relief valve setting | a : 21 bar [304.6 lbf/in2] - standard | ||
| paint and packaging | 0 : painted primer blue (standard) | ||
| design code | a : a |
| product series | acl : hydrostatic - heavy duty variable pump (series 2) | ||
| input shaft | 23 : 23 tooth 16/32 pitch spline | ||
| valve plate | 0 : v-groove | ||
| high press relief valve setting port a | t : 414 bar [6000 lbf/in2] with 2 bar [29 lbf/in2] check valve spring | ||
| press override setting port a | r : 345 bar [5000 lbf/in2] adjustable range 310-414 bar [4500-6000 lbf/in2] | ||
| special pump features | 00 : no special features | ||
| control orifice supply (p) | 0 : none | ||
| control orifice upper servo (s2) | g : 1;45 [.057] diameter | ||
| charge pump displacement | 3 : 21;0 cm3/r [1.28 in3/r] (models 054-105) | ||
| charge pump options | 0 : none | ||
| charge pump special features | 0 : no charge pump special features | ||
| identification on unit | 0 : standard |
