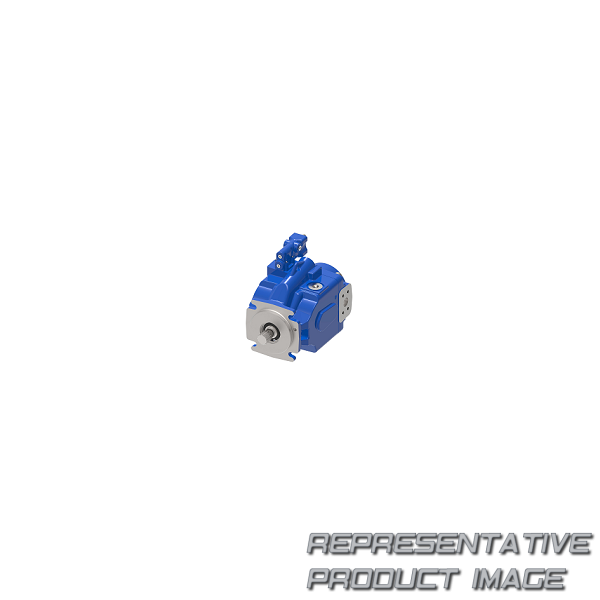

| pumps | ady098r06ab20a282000001a c100cd0b | ||
| displacement | 098 : 98.0 cm3/r [5.98 in3/r] | ||
| front mounting & input shaft | 06 : 4 bolt c (sae j744-127-4) with 14 tooth 12/24 pitch spline shaft (sae j744-32-4) | ||
| drain port size & location | 2 : 1.3125-12 unf-2b o-ring port - bottom | ||
| controller type | aa : pressure and flow compensator with .4375-20 sae o-ring load sense port left side | ||
| flow compensator setting | 32 : 19-21 bar [276-305 lbf/in2] | ||
| control special features | 00 : no control special features | ||
| auxiliary (rear) mount & output shaft | ac : sae j744 flange 101-2/4 (2/4 bolt b); accepts 13t 16/32 spline with 41.0 (1.61) extension (coupler included) | ||
| pump special features | 00 : no pump special features | ||
| identification / packaging | 00 : mark danfoss product number and full model code on label |
| code title | ady : pressure compensated/pressure flow compensated open circuit piston pump | ||
| input shaft rotation | r : right-hand rotation (cw) right side suction port, left side pressure port | ||
| main ports size & location | ab : side ports; suction - 2.50 sae j518 4-bolt split flange port standard pressure series (code 61); pressure - 1.00 sae j518 4-bolt split flange port standard pressure series (code 61) | ||
| diagnostic pressure ports | 0 : no diagnostic pressure ports | ||
| pressure compensator setting | 43 : 275,8-282,7 bar [4000-4100 lbf/in2] | ||
| torque control setting | 00 : no torque control | ||
| maximum displacement option | 01 : standard displacement (as given in code title) | ||
| shaft seal | 1 : standard fluorocarbon shaft seal | ||
| paint | cd : blue primer | ||
| design code | b : second design |
