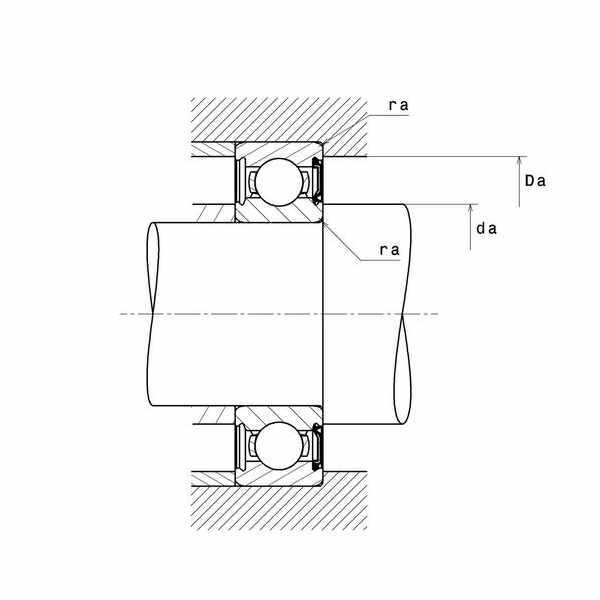

| ra max - Max shaft & housing fillet radius | 2 mm | ||
| da max - Max shoulder diameter IR | 95,5 mm | ||
| BSF - Characteristic rolling element frequency | 5,601 Hz | ||
| BPFI - Characteristic inner ring frequency | 5,866 Hz | ||
| Tmax - Max operating temperature | 110 °C | ||
| Nlim - Grease lubrication limit speed | 3000 tr/min | ||
| Cu - Fatigue limit load | 3,95 kN | ||
| C - Dynamic load | 80,5 kN | ||

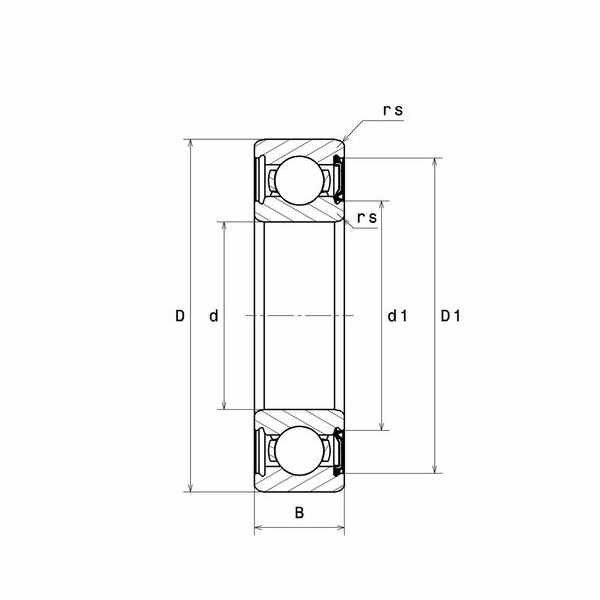

| rs - Min fillet radius | 2 mm |
| Da max - Max shoulder diameter OR | 131 mm | ||
| da min - Min shoulder diameter IR | 89 mm | ||
| FTF - Characteristic cage frequency | 0,413 Hz | ||
| BPFO - Characteristic outer ring frequency | 4,134 Hz | ||
| Tmin - Min operating temperature | -25 °C | ||
| f0 - Coefficient | 14.60 | ||
| C0 - Static load | 53 kN | ||
| Radial clearance class | CN | ||
| Brand | NTN |
