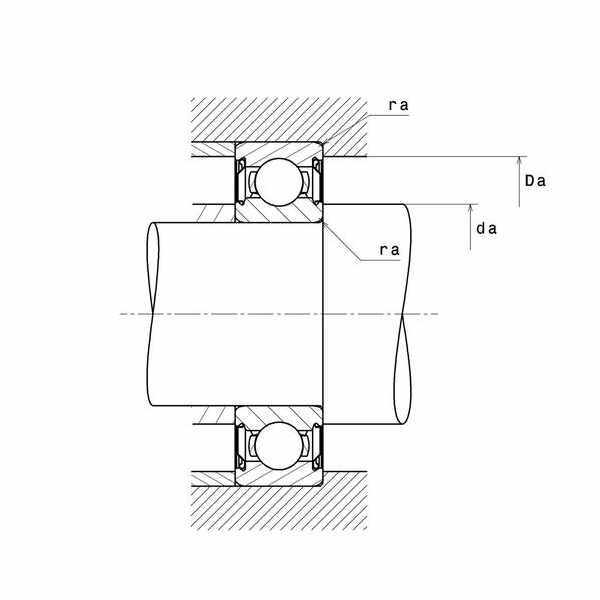

| ra max - Max shaft & housing fillet radius | 0,6 mm | ||
| da max - Max shoulder diameter IR | 18,3 mm | ||
| BSF - Characteristic rolling element frequency | 3,43 Hz | ||
| BPFI - Characteristic inner ring frequency | 4,446 Hz | ||
| Tmax - Max operating temperature | 350 °C | ||
| Nlim - Mechanical Limit Speed | 200 tr/min | ||
| C0 - Static load | 3,1 kN | ||

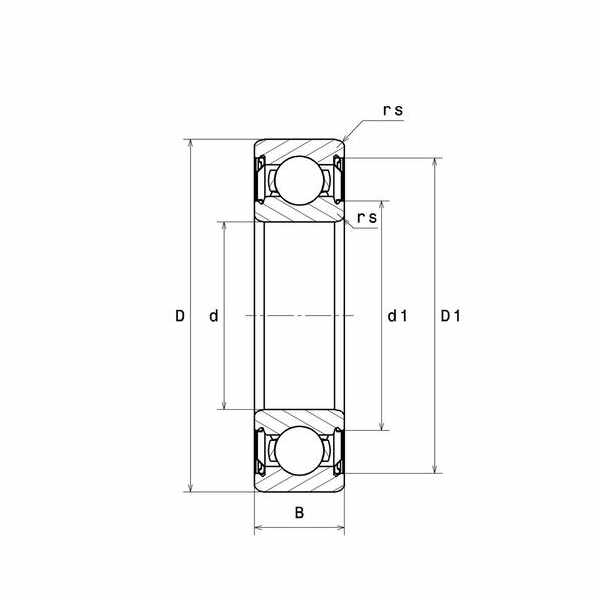

| rs - Min fillet radius | 0,6 mm | ||
| Brand | SNR |
| Da max - Max shoulder diameter OR | 28 mm | ||
| da min - Min shoulder diameter IR | 16 mm | ||
| FTF - Characteristic cage frequency | 0,365 Hz | ||
| BPFO - Characteristic outer ring frequency | 2,554 Hz | ||
| Tmin - Min operating temperature | -30 °C | ||
| f0 - Coefficient | 12.30 | ||
| Radial clearance class | > C5 | ||
| D1 - Inner diameter outer ring | 27,9 mm |
