| switch-on power ac 50 hz | 10 va | ||
| compressed air connection pilot exhaust | m5 | ||
| compressed air connection input | base plate iso 5599-1 | ||
| connection type | plate connection | ||
| valve type | spool valve | ||
| Standards | iso 5599-1 | ||
| Sealing principle | soft seal | ||
| electrical connection size | form b, industry | ||
| Manual override | with detent | ||
| operational voltage ac at 50 hz | 230 v | ||
| working pressure min. | 3 bar | ||

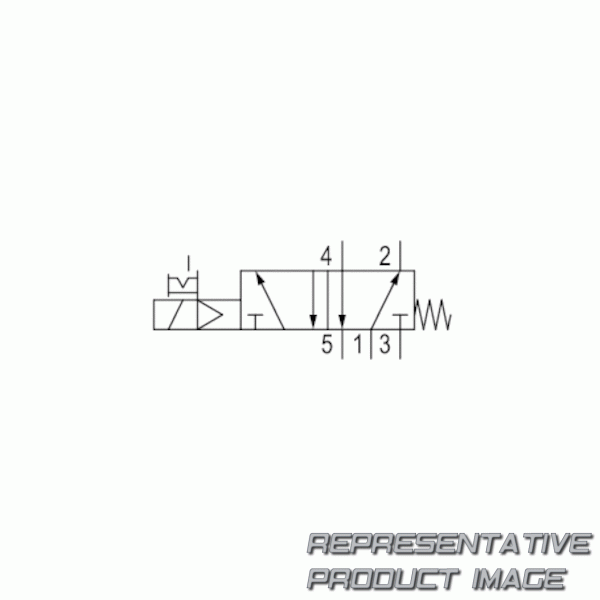

| switching principle | 5/2 | ||
| activation | electrically |
| holding power ac 50 hz | 8 va | ||
| compressed air connection, exhaust | base plate iso 5599-1 | ||
| return | with spring return | ||
| blocking principle | single base plate principle | ||
| pilot valve width | 22 mm | ||
| pilot | internal | ||
| actuating control | single solenoid | ||
| electrical connection type | plug | ||
| voltage tolerance ac 50 hz | -10% / +10% | ||
| working pressure max | 10 bar | ||
| compressed air connection output | base plate iso 5599-1 | ||
| nominal flow qn | 4800 l/min |
