| max. particle size | 5 µm | ||
| max. medium temperature | 50 °c | ||
| max. ambient temperature | 50 °c | ||
| control pressure max. | 8 bar | ||
| blocking principle | single valve | ||
| connection type | pipe connection | ||
| pilot | external | ||
| electrical connection size | iso 15217, form c | ||
| voltage tolerance dc | -10% / +10% | ||
| working pressure max | 8 bar | ||
| compressed air connection output | Ø 8x1 | ||

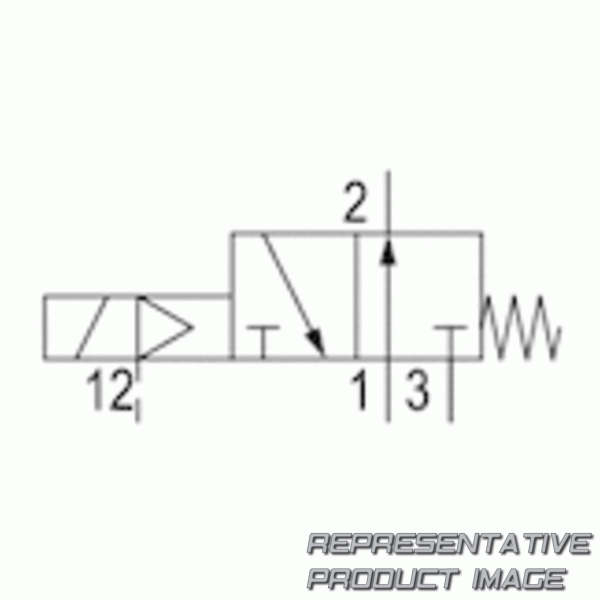

| switching principle | 3/2 | ||
| activation | electrically |
| Medium | compressed air | ||
| min. medium temperature | -15 °c | ||
| min. ambient temperature | -15 °c | ||
| control pressure min. | 2 bar | ||
| return | with spring return | ||
| valve type | poppet valve | ||
| Sealing principle | soft seal | ||
| electrical connection type | plug | ||
| dc operating voltage | 24 v | ||
| working pressure min. | 0.5 bar | ||
| Version | no | ||
| nominal flow qn | 600 l/min |
