| compressed air connection pilot exhaust | Ø 4 | ||
| oil content of compressed air max. | 1 mg/m³ | ||
| max. particle size | 5 µm | ||
| max. medium temperature | 60 °c | ||
| max. ambient temperature | 60 °c | ||
| control pressure min. | 2 bar | ||
| can be assembled into blocks | can be assembled into blocks | ||
| Sealing principle | soft seal | ||
| working pressure min. | 0.5 bar | ||
| compressed air connection output | Ø 8x1 | ||
| return type | with spring return | ||
| nominal flow qn | 850 l/min |
| version pneumatic port | nc | ||
| oil content of compressed air min. | 0 mg/m³ | ||
| Medium | compressed air | ||
| min. medium temperature | -15 °c | ||
| min. ambient temperature | -15 °c | ||
| blocking principle | plate principle | ||
| valve type | poppet valve | ||
| working pressure max | 8 bar | ||
| connection type | pipe connection | ||
| actuating control | single air pilot | ||

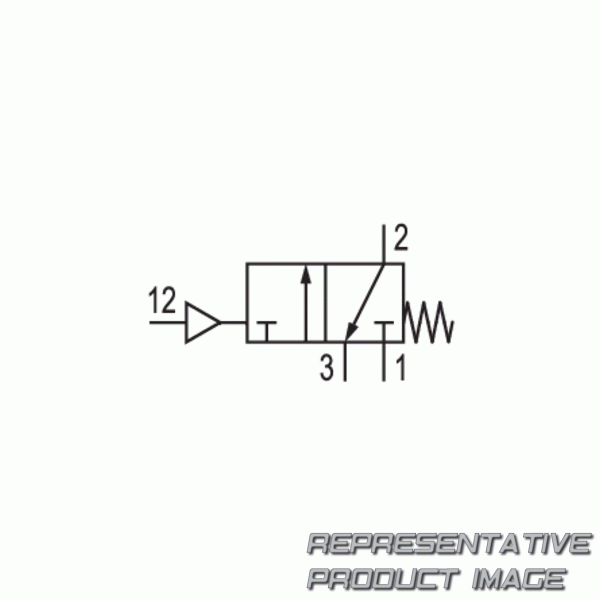

| switching principle | 3/2 | ||
| activation | pneumatically |
