| max. medium temperature | 50 °c | ||
| max. ambient temperature | 50 °c | ||
| can be assembled into blocks | can be assembled into blocks | ||
| connection type | pipe connection | ||
| valve type | diaphragm poppet valve | ||
| Sealing principle | soft seal | ||
| electrical connection type | plug | ||
| voltage tolerance ac 60 hz | -10% / +20% | ||
| operational voltage ac at 60 hz | 230 v | ||
| working pressure max | 10 bar | ||
| compressed air connection output | Ø 8x1 | ||

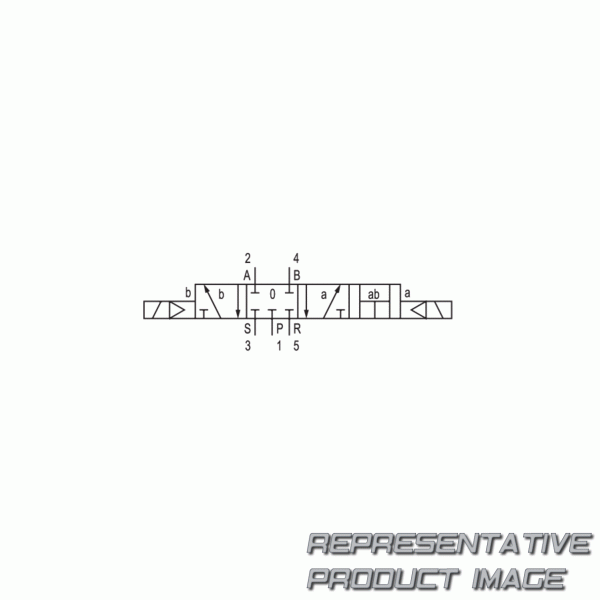

| switching principle | 5/4 | ||
| activation | electrically |
| min. medium temperature | -15 °c | ||
| min. ambient temperature | -15 °c | ||
| blocking principle | plate principle, single base plate principle | ||
| valve plug connector | with valve plug connector | ||
| pilot | internal | ||
| electrical connection size | en 175301-803, form a | ||
| Manual override | without detent | ||
| voltage tolerance ac 50 hz | -20% / +10% | ||
| operational voltage ac at 50 hz | 230 v | ||
| working pressure min. | 3 bar | ||
| Version | closed center | ||
| nominal flow qn | 700 l/min |
