| oil content of compressed air max. | 5 mg/m³ | ||
| max. particle size | 50 µm | ||
| max. medium temperature | 60 °c | ||
| max. ambient temperature | 60 °c | ||
| blocking principle | single base plate principle, plate principle | ||
| corrosion resistance | corrosion-protected | ||
| pilot | internal | ||
| atex | suitable for atex | ||
| Sealing principle | soft seal | ||
| working pressure min. | 2 bar | ||
| compressed air connection output | Ø 10x1 | ||

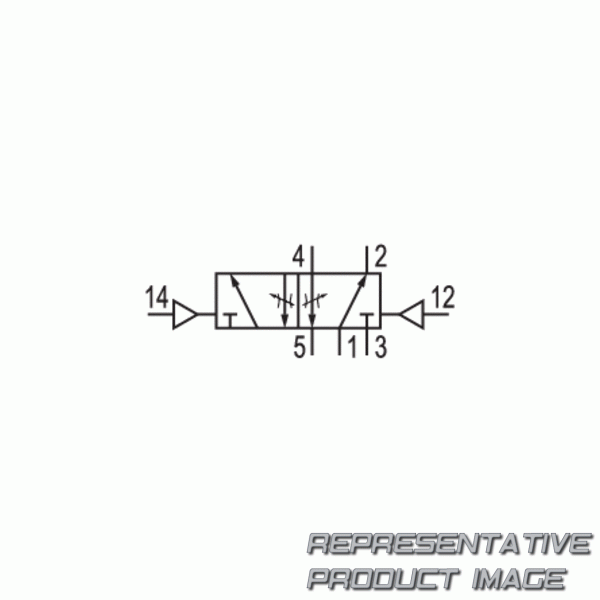

| switching principle | 5/2 | ||
| activation | pneumatically |
| oil content of compressed air min. | 0 mg/m³ | ||
| Medium | compressed air | ||
| min. medium temperature | -15 °c | ||
| min. ambient temperature | -15 °c | ||
| throttle | with throttle | ||
| can be assembled into blocks | can be assembled into blocks | ||
| valve type | diaphragm poppet valve | ||
| Manual override | with detent | ||
| working pressure max | 10 bar | ||
| connection type | pipe connection | ||
| actuating control | double solenoid | ||
| nominal flow qn | 950 l/min |
