| activation | pneumatically | ||
| compressed air connection output | g 1/2 | ||
| working pressure min. | -1 bar | ||

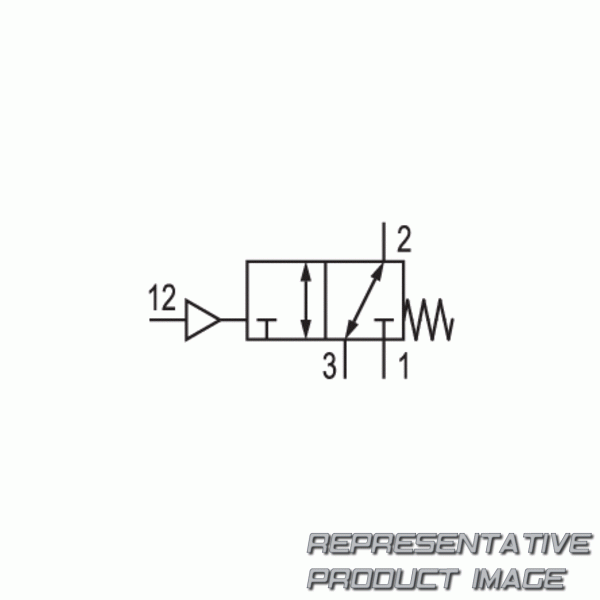

| valve type | poppet valve | ||
| control pressure max. | 10 bar | ||
| max. ambient temperature | 70 °c | ||
| max. medium temperature | 120 °c | ||
| max. particle size | 5 µm | ||
| oil content of compressed air max. | 5 mg/m³ | ||
| Housing Material | aluminum |
| nominal flow qn | 4240 l/min | ||
| connection type | plate connection | ||
| working pressure max | 10 bar | ||
| control pressure min. | 3.5 bar | ||
| min. ambient temperature | -20 °c | ||
| min. medium temperature | -20 °c | ||
| Medium | compressed air | ||
| oil content of compressed air min. | 0 mg/m³ | ||
| Weight | 0.55 kg | ||
| seal material | fluorocarbon caoutchouc, acrylonitrile butadiene styrene |
