| activation | mechanical | ||
| valve type | spool valve, positive overlapping | ||
| actuating control | single solenoid | ||

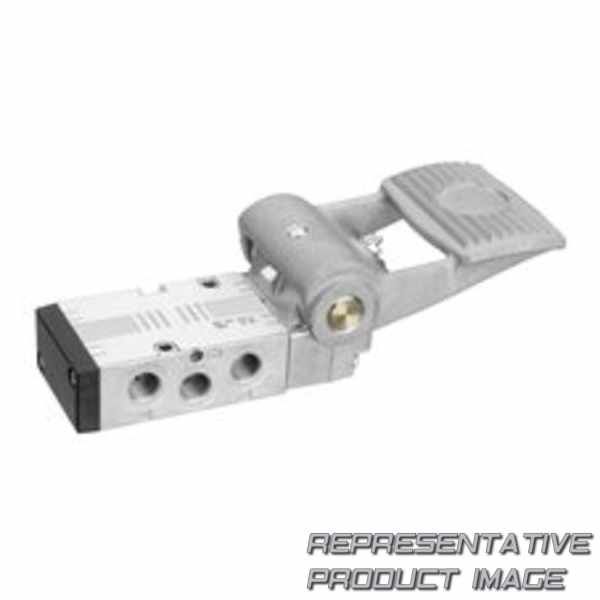

| actuating element | pedal | ||
| compressed air connection | g 1/4 | ||
| compressed air connection input | g 1/4 | ||
| compressed air connection, exhaust | g 1/4 | ||
| working pressure min. | -0.95 bar | ||
| actuating force min. | 40 n | ||
| min. ambient temperature | -25 °c | ||
| min. medium temperature | -25 °c | ||
| Medium | compressed air | ||
| oil content of compressed air max. | 1 mg/m³ |
| frame size | cd07 | ||

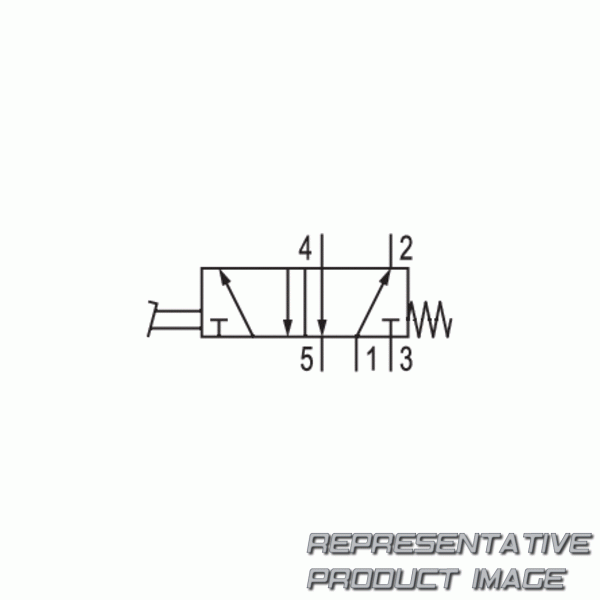

| switching principle | 5/2, with spring return | ||
| plate connection | pipe connection | ||
| Sealing principle | soft seal | ||
| compressed air connection type | internal thread | ||
| compressed air connection output | g 1/4 | ||
| nominal flow qn | 1200 l/min | ||
| working pressure max | 10 bar | ||
| atex | suitable for atex | ||
| max. ambient temperature | 80 °c | ||
| max. medium temperature | 80 °c | ||
| oil content of compressed air min. | 0 mg/m³ |
