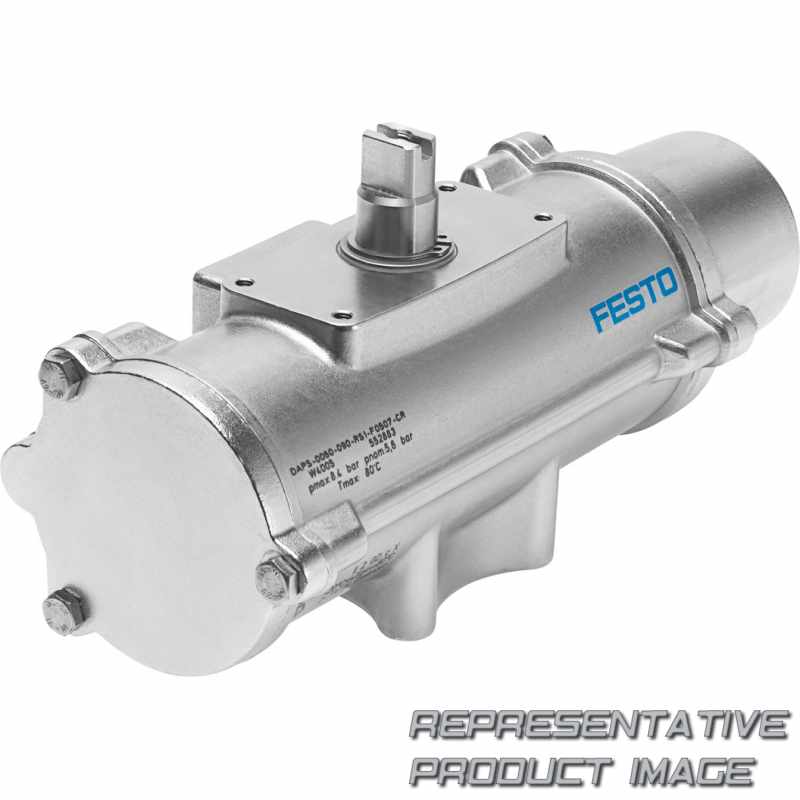

FESTO 552879 semi-rotary drive

Name: 552879 FESTO
Brand: FESTO
SKU: 735268-en-gbp
Price: 622.93 GBP
Availability: InStock

DAPS-0030-090-RS1-F0305-CR

£622.93

available with 3 to 7 days delivery to United States

Specifications

Series (DAPS)	Semi-rotary drive
Size of valve actuator (0030)	30
Swivel angle (090)	90
Closing direction (R)	Closes to the right
Function (S)	Single-acting, pushing
Spring force (1)	For connecting pressure of 2.8 bar

Material number shaft		1.43
Material screws		High-alloy stainless steel
Material housing		High-alloy stainless steel
Material number cover		1.44
Note on materials		RoHS-compliant
Shaft connection		T11
Air consumption at 0.6 MPa (6 bar, 87 psi) per cycle 0°-nominal swivel angle-0°		1,12 l
Spring return torque at 90° swivel angle		15 Nm
Spring return torque at 0° swivel angle		10 Nm
Corrosion resistance class CRC		3 - high corrosion stress
Operating medium		Compressed air to ISO 8573-1:2010 [7:4:4]
Explosion ignition protection type for dust		Ex h IIIC T85°C...T200°C Db X
ATEX category dust		II 2D
Explosion protection		Zone 1 (ATEX) Zone 2 (ATEX) Zone 21 (ATEX) Zone 22 (ATEX)
CE mark (see declaration of conformity)		To EU Explosion Protection Directive (ATEX)
Operating pressure		2,8 bar ... 8,4 bar
Safety Integrity Level (SIL)		Up to SIL 2 High Demand mode To SIL 2 Low Demand mode
Symbol		00991266
Position detection		Without
Mode of operation		Single-acting
Cushioning		No cushioning
Shaft connection depth		12,1 mm
Flange hole pattern		F03 F05

Material shaft		High-alloy stainless steel
Material number housing		1.44
Material seals		FPM NBR PUR
Material cover		High-alloy stainless steel
Pneumatic connection		G1/8
Product weight		2.400 g
Spring strength		1
Spring return torque at 50° swivel angle		7,5 Nm
Ambient temperature		-20 °C ... 80 °C
Note on operating and pilot medium		Lubricated operation possible (in which case lubricated operation will always be required)
Explosion ambient temperature		-20°C <= Ta <= +60°C
Explosion ignition protection type for gas		Ex h IIC T6...T3 Gb X
ATEX category gas		II 2G
CE marking (see declaration of conformity)		To UK EX instructions
Nominal operating pressure		5,6 bar
Supply pressure for spring strength		2,8 bar
Valve connection conforms to standard		VDI/VDE 3845 (NAMUR)
Closing direction		Closes to the right
Design		Scotch yoke system
Mounting position		optional
Fitting connection conforms to standard		ISO 5211
Swivel angle		90 deg
Size of valve actuator		30
