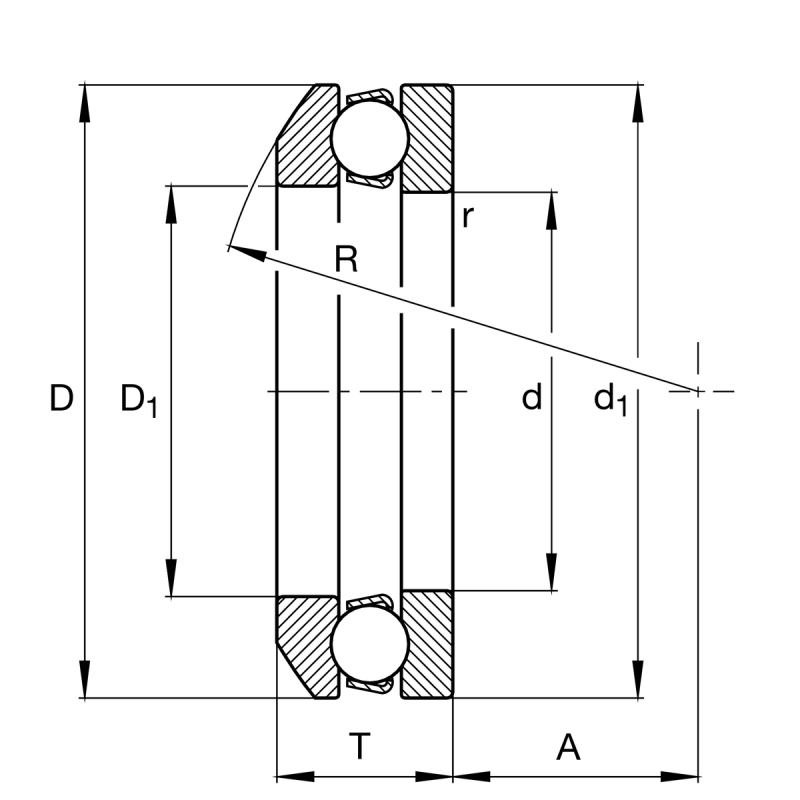

| Distance of the center point | A | 16 | mm |
| Minimum chamfer dimension | rmin | 0.60 | mm |

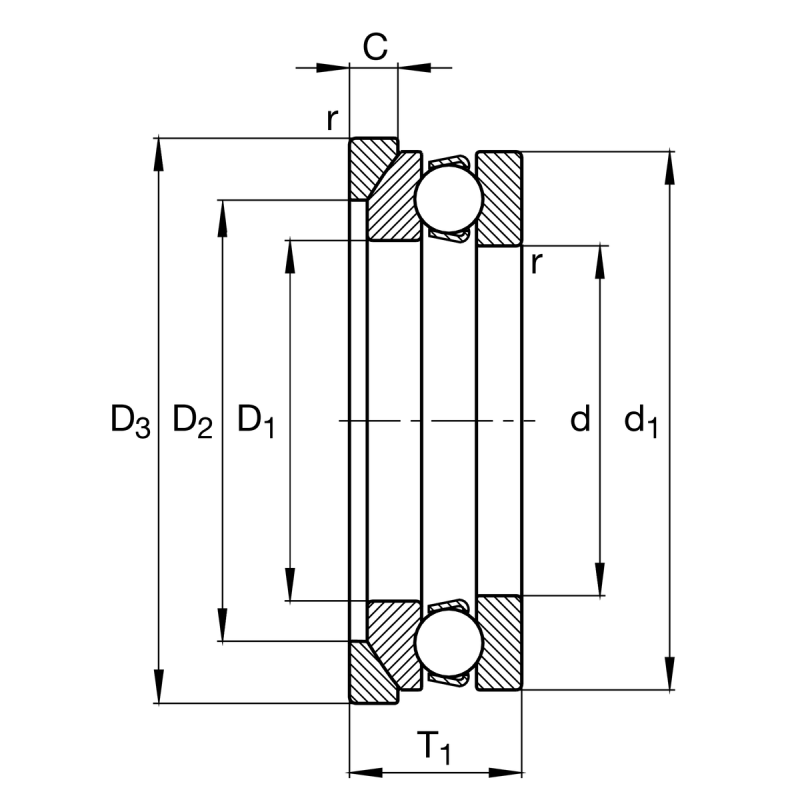

| Height with seat washer | T1 | 15 | mm |
| Outer diameter shaft washer | d1 | 35 | mm |
| Inner diameter shaft washer | d | 17 | mm |
| Height | T | 13.20 | mm |
| Basic static load rating, axial | C0a | 27,500 | |
| Limiting speed | nG | 9,700 |
| Outer diameter housing washer | D | 35 | mm |
| Basic dynamic load rating, axial | Ca | 17,200 | |
| Fatigue load limit, axial | Cua | 1,240 | |
| Reference speed | nϑr | 13,200 |

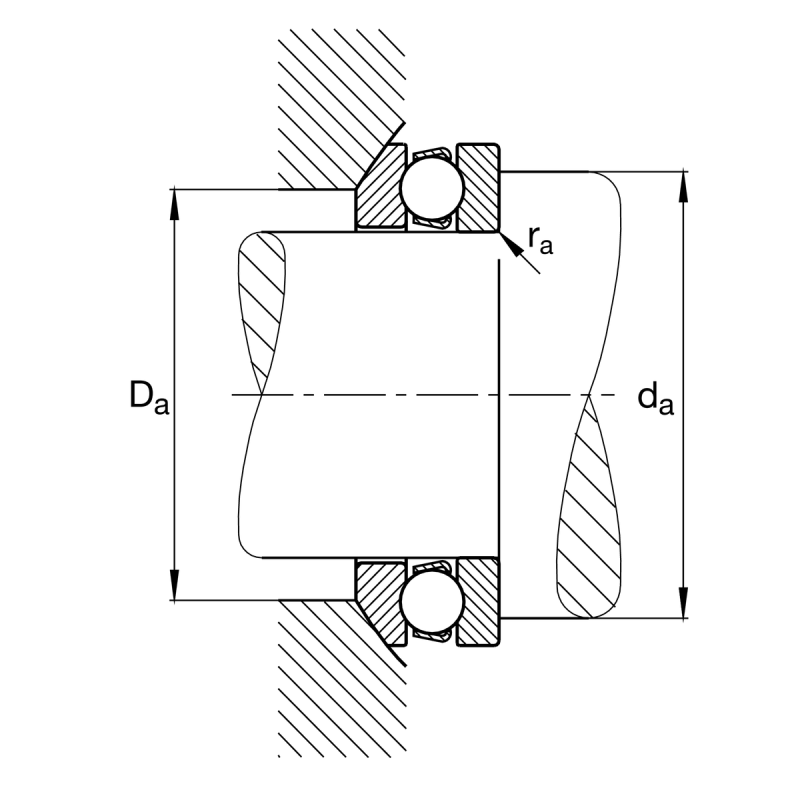

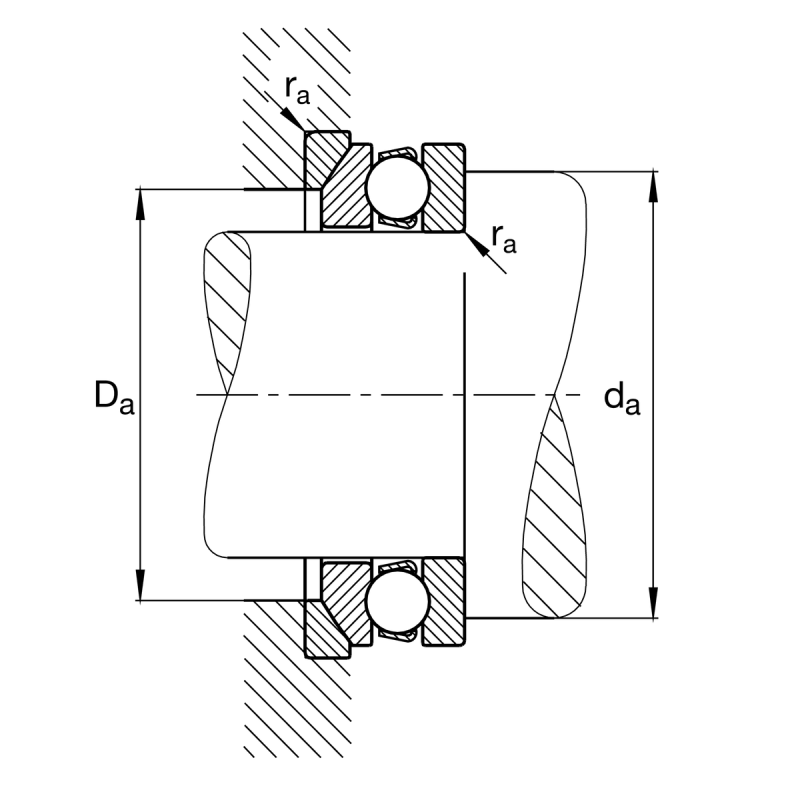

| Minimum diameter shaft shoulder | da min | 28 | mm |
| Maximum filled radius | ra max | 0.60 | mm |
| Maximum diameter of housing shoulder | Da max | 26 | mm |
| Manufacturer | Part Number |
|---|---|
| SKC | 5949142 |
| SKC | 5449556 |
| KOYO | 53203 |
| NSK | 53203 |
| SKF | 53203 (SKF) |
| RIV Officine di Villar Perosa | LS17 |
