| max. torsional moment of piston rod | 2 nm | ||
| max. total braking energy etotal | 10 mj | ||
| max. braking energy per braking cycle elu6 | 15 j | ||
| required flow rate qn | 140 l/min | ||
| max. ambient temperature | 80 °c | ||
| max. particle size | 5 µm | ||
| max. medium temperature | 80 °c | ||
| release pressure max. | 10 bar | ||
| max. piston speed v max. | 1 m/s | ||
| Piston rod extension | 145 mm | ||
| Piston diameter | 50 mm | ||
| Type | clamping jaw lock |
| max. moving mass mmax, external | 194 kg | ||
| max. braking energy per hour plu6 | 2250 j | ||
| braking energy per braking cycle related to b10d, eb10d | 5 j | ||
| oil content of compressed air min. | 0 mg/m³ | ||
| min. ambient temperature | -25 °c | ||
| Medium | compressed air | ||
| min. medium temperature | -25 °c | ||
| release pressure min. | 4 bar | ||
| compressed air connection | g 1/8 | ||
| suitable piston rod Ø | 20 mm | ||
| piston Ø | 50 mm | ||

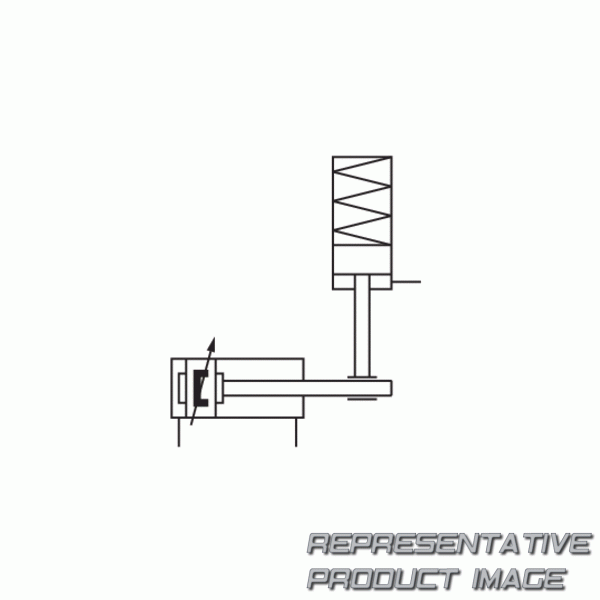

| function | holding and braking: non-adjustable spring, release: compressed air |
