| cylinder tube | steel | ||
| seal material | acrylonitrile butadiene rubber | ||
| piston rod | stainless steel | ||
| oil content of compressed air min. | 0 mg/m³ | ||
| max. medium temperature | 80 °c | ||
| Medium | compressed air | ||
| weight 0 mm stroke | 4.1 kg | ||
| Piston rod thread | m16x1,5 | ||
| working pressure max | 8 bar | ||
| max. ambient temperature | 80 °c | ||
| extracting piston force | 4465 n | ||

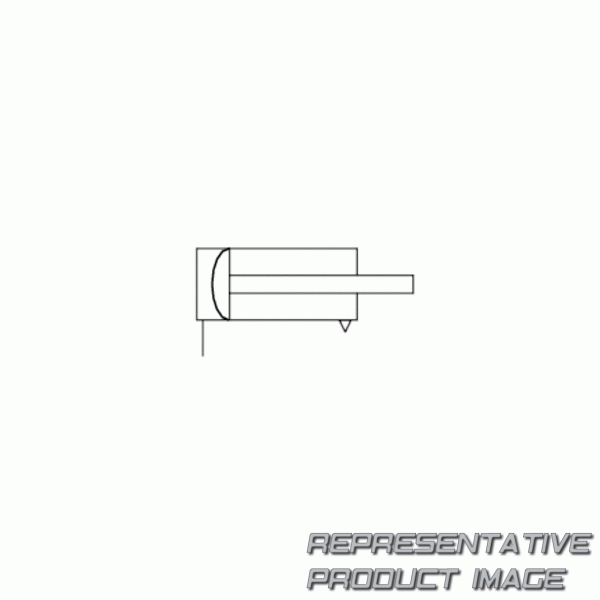

| functional principle | single-acting, retracted without pressure | ||
| piston Ø | 95 mm |
| material, front cover | aluminum | ||
| piston material | aluminum | ||
| oil content of compressed air max. | 1 mg/m³ | ||
| max. particle size | 5 µm | ||
| min. medium temperature | -25 °c | ||
| stroke max. | 75 mm | ||
| Weight | 4.1 kg | ||
| ports | g 3/8 | ||
| working pressure min. | 0.035 bar | ||
| min. ambient temperature | -25 °c | ||
| pressure for determining piston forces | 6,3 bar | ||
| Stroke | 75 mm |
