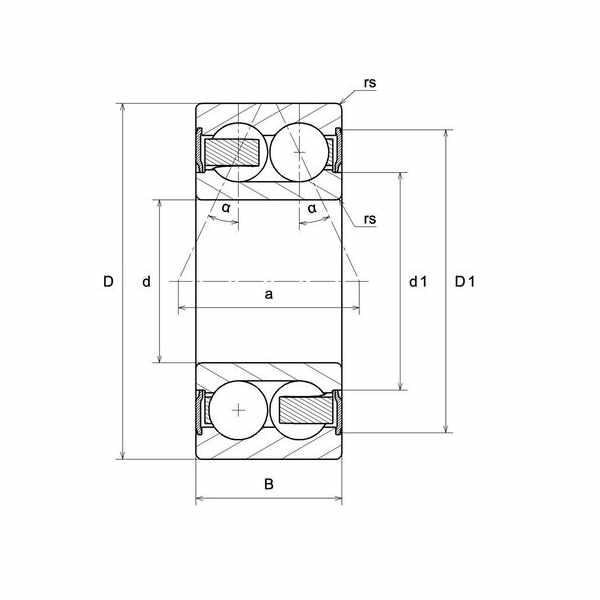

| α - Contact angle | 25 ° | ||
| Brand | NTN | ||
| Radial clearance class | CN | ||
| C0 - Static load | 12,3 kN | ||
| Nlim - Oil lubrication limit speed | 11000 tr/min | ||
| BPFO - Characteristic outer ring frequency | 4,206 Hz | ||
| FTF - Characteristic cage frequency | 0,421 Hz | ||

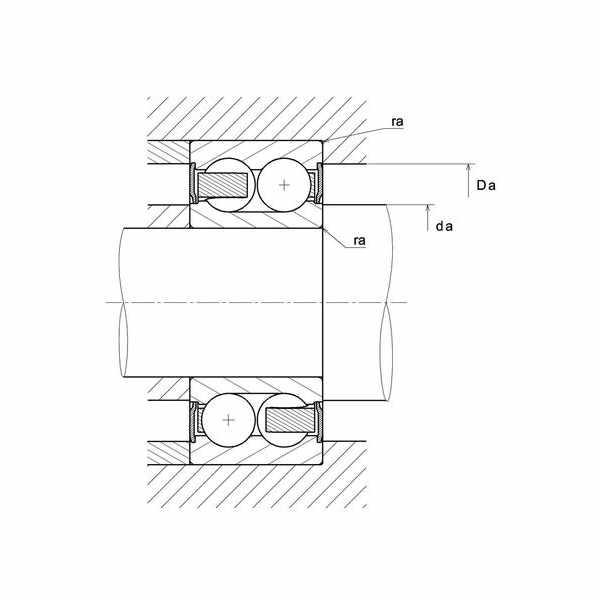

| da min - Min shoulder diameter IR | 31 mm | ||
| Da max - Max shoulder diameter OR | 46 mm |
| rs - Min fillet radius | 1 mm | ||
| a - Charge load application point | 25,4 mm | ||
| C - Dynamic load | 16,9 kN | ||
| Cu - Fatigue limit load | 0,74 kN | ||
| Nlim - Grease lubrication limit speed | 8500 tr/min | ||
| BPFI - Characteristic inner ring frequency | 5,794 Hz | ||
| BSF - Characteristic rolling element frequency | 5,562 Hz | ||
| da max - Max shoulder diameter IR | 0 mm | ||
| ra max - Max shaft & housing fillet radius | 1 mm |
