| fittings | ftng (perm), 4-sprl, dkos, steel 45 deg | ||
| certifications | sae j1176 | ||

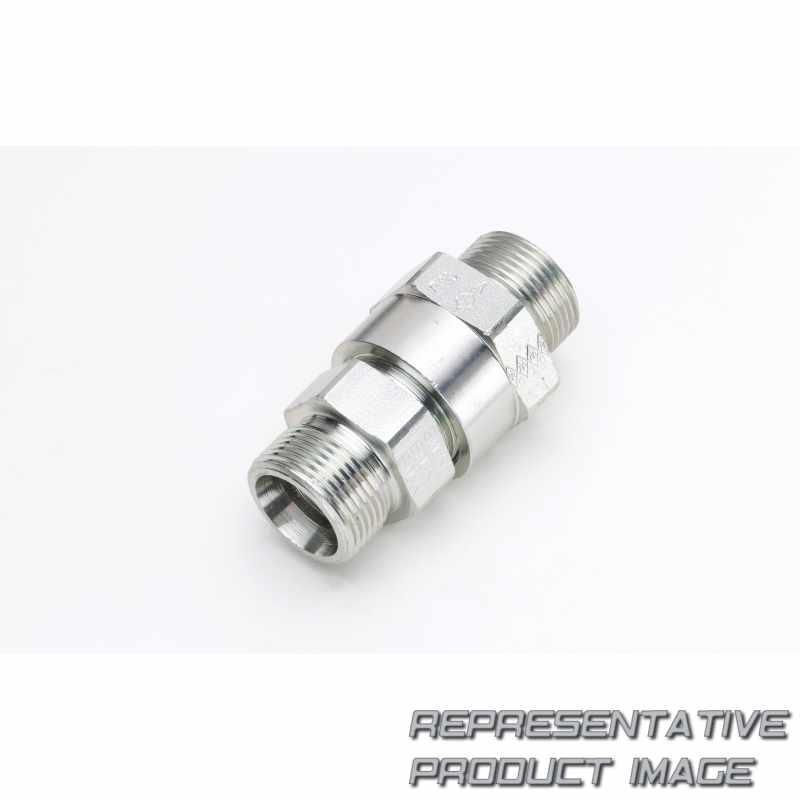

| description product name | danfoss danfoss 4s series female swivel din 2° seat 45° | ||
| drop dimension | 1.38 | ||
| end gender 1 | female | ||
| end size 2 | -16 in | ||
| end type 2 | line/hose/tube | ||
| finish plating | dura-kote | ||
| hose cut off factor | 3.72 inch | ||
| icc | hose fittings | ||
| language | english | ||
| package length | 6.75 inch | ||
| package width | 6.75 inch | ||
| product length | 5.28 inch | ||
| product trade name | 4s series | ||
| product width | 2.08 inch | ||
| sub brand | danfoss | ||
| thread size 1 | m42x2 | ||
| UPC | 813688022826 |
| angle shape | 45 degree | ||
| compatible hoses | ec525-12 to -32; gh493-12 to fc636-12 to -32; fc736-12 to -32; fc500-12 to -24; fc273b-12,-16; gh506-12 to -32; fc254-12 to -32; ec810-12,-16; ec600-12,-16 h430-12 to -32; h430r-12 to -32; ec525-12 to -32; h471-12 to -24; h464-12 to -32; h485-16 | ||
| description short | female swivel din 24°° seat 45°° | ||
| eccn | ear99 | ||
| end size 1 | 50 mm | ||
| end type 1 | metric | ||
| feature | dura-seal?? technology eliminates hose assembly cool-down leakage, while extending hose assembly life, reducing equipment down-time.|dura-kote?? offers three times the corrosion protection on carbon steel fittings as compared to competitive hose fittings.|fast & easy assembly.|customer friendly system helps the assembler quickly and easily identify the correct hose and fitting to be crimped together.|provides a more reliable/safe assembly while reducing scrap costs from assembling the wrong hose and fitting. | ||
| hex size 1 | 1.96850393700787 inch | ||
| hose dash size | -16 | ||
| item type | fitting assembly | ||
| package height | 5.5 inch | ||
| package weight | 2.63 pound | ||
| product height | 1.38 inch | ||
| product material | carbon steel | ||
| product weight | 30.3 ounce | ||
| seal part if included | ff91157-16|wal304293 | ||
| thread sealant | no | ||
| unspsc | 27121707 |
