| connection 1 thread size (metric) | npt1/4 | ||
| connection 1 thread style | npt | ||
| body material | stainless steel 316l | ||
| maximum operating pressure | 40 barg | ||
| maximum operating temperature | 180 °c | ||
| Weight | 0.079 kg | ||
| media | many fluids | ||

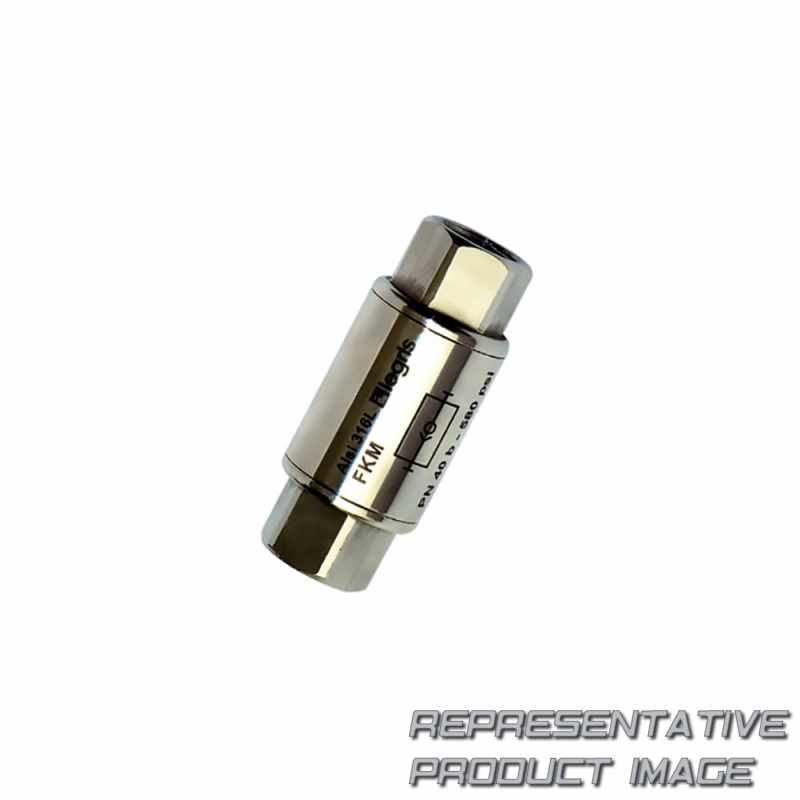

| product type | stainless steel non-return valves |
| diameter nominal (dn) | 10 | ||
| shape | non-return valve | ||
| o-ring material | fkm | ||
| minimum operating temperature | -20 °c | ||
| quantity per box | 2 | ||
| Application | pneumatics, machine tools, food process, printing, chemical, textile, automotive process | ||
| specifications met | di: 2002/95/ec (rohs), rg: 1907/2006 (reach), di: 97/23/ec (ped) |
