FESTO 4821481 pin module

Name: 4821481 FESTO
Brand: FESTO
SKU: 832569-en-gbp
Price: 12.14 GBP
Availability: SoldOut

EXCM-30-

£12.14 ~~£20.53~~ -40%

Limited stock only available on quotation

Specifications

Size	30

Mounting Position	optional

Degree of protection		IP20
Size		30
Operating mode of drive unit		Micro step, 2000 steps/revolution
Position sensor		Encoder
Protective function		I²t monitoring Temperature monitoring Current monitoring Voltage failure detection Following error monitoring Software end-position detection
Type of interpolation		Linear interpolation
Position mode		Record selection mode Position directly transferred
Display		7-segment LED
Max. speed		0,5 m/s ... 1 m/s
Brake resistance		15 Ohm
Duty cycle		100%
Nominal voltage for logic power supply DC		24 V
Parameterisation interface		Ethernet
Ethernet, supported protocols		TCP/IP
CE mark (see declaration of conformity)		To EU EMC Directive
Relative air humidity		0 - 90% Non-condensing
Ambient temperature		10 °C ... 45 °C
Max. force Fz		1.345 N
Max. moment My		10,9 Nm
Max. process force in Z direction		100 N
Guide value nominal load, horizontal		3 kg
Feed constant		38 mm/U
Number of digital logic inputs		8
Process interfacing		I/O coupling For 31 sets
Working range of logic input		24 V
Switching logic for inputs		NPN (negative switching) PNP (positive switching)
Communication interface, logic		CAN DS 301 I/O 31pos Ethernet - TCP/IP
Note on materials		Contains paint-wetting impairment substances RoHS-compliant

Motor holding torque		0,5 Nm
Controller operating mode		PWM MOSFET power output stage Cascade controller with P position controller PI speed controller PI current regulator
Mounting position		optional
Mains filter		Integrated

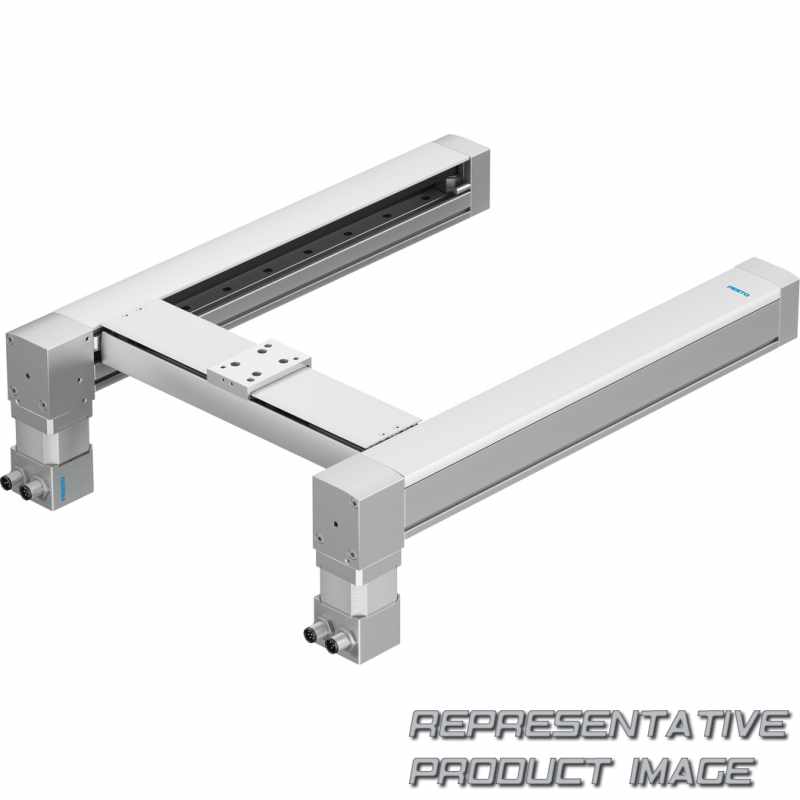

Design		Planar surface gantry
Type of motor		Stepper motor
Safety function		Safe torque off (STO)
Max. acceleration		10 m/s² ... 20 m/s²
Repetition accuracy		±0.05 mm
Features of digital logic outputs		Not galvanically isolated
Max. current digital logic outputs		100 mA
Nominal voltage load voltage DC		24 V ... 48 V
Position control		yes
Permissible range for logic voltage		± 15 %
Storage temperature		-10 °C ... 60 °C
Sound pressure level		52 dB(A)
Max. drive torque		0,2 Nm
Max. moment Mx		5,5 Nm
Max. moment Mz		5,5 Nm
Nominal torque		0,04 Nm
Guide value nominal load, vertical		2 kg
Number of digital logic outputs 24 V DC		5
Communication profile		FHPP
Specification logic input		Based on IEC 61131-2
Features of logic input		Galvanically connected to logic potential
Switching logic for outputs		NPN (negative switching) PNP (positive switching)
Type of mounting		Profile mounting
