| Weight | 0.28 lb/ft, 0.42 kg/m | ||
| hose inner tube material | nitrile nbr | ||
| materials of construction | rubber | ||
| maximum operating temperature | 100 °c (water: 85 , air: 70), 212 °f (water: 185, air: 158) | ||
| cover color | black | ||
| minimum bend radius | 75 mm, 2.953 inch | ||
| hose inside diameter | 9.5 mm, 3/8 inch | ||
| product style | elite no-skive power lift tough cover | ||
| technology | fluid & gas handling | ||
| industry | off-road machinery | ||
| Brand | parker | ||
| minimum operating temperature | -40 °c, -40 °f | ||
| hose cover material | high abrasion resistant msha approved synthetic rubber |
| hose reinforcement material | 2 high tensile steel wire braids | ||
| cover material | highly abrasion resistance msha approved | ||
| specifications met | msha, msha approved | ||
| compatible fitting | 48 series | ||
| design factor | 4:1 | ||
| hose outside diameter | 17.2 mm, 0.677 inch | ||
| maximum operating pressure | 40 mpa, 5800 psi, 400 bar | ||

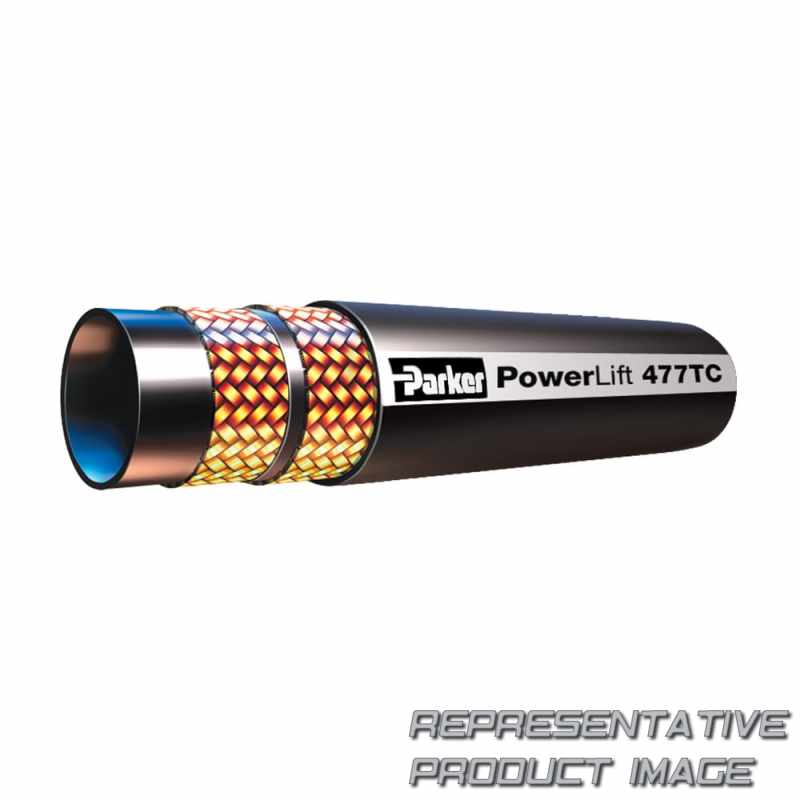

| product type | hydraulic hose | ||
| Application | trucks, cranes & lifting equipment | ||
| division | polymer hose division europe | ||
| media | petroleum, water-glycol fluids, lubricating oils, air & water, fuels (check fuel type with our catalogue chart)., coolants i.e. glycol, industrial air, lubricants, water | ||
| hose i.d. (size) | -6 |
