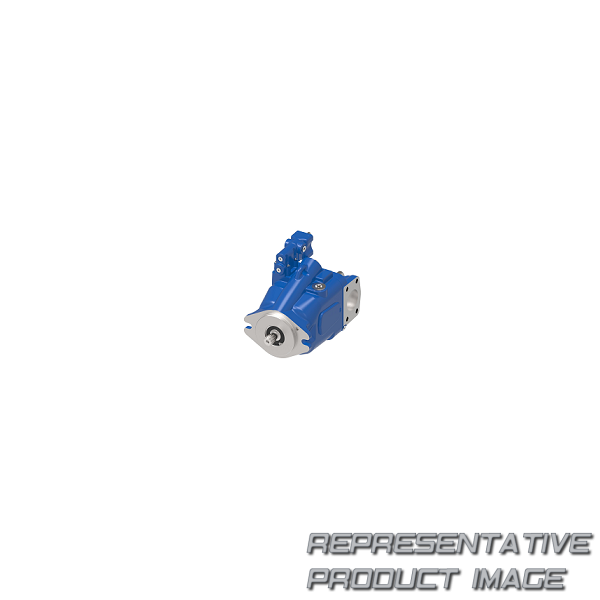

| pumps | 2.50 cid (41cc) 420 code c | ||
| displacement | 041 : 41,0 cm3/r [2.50 in3/r] | ||
| front mounting & input shaft | 01 : 2 bolt b (sae j744-101-2) with 22,2 [.88] dia straight key shaft (sae j744-22-1) (key included) | ||
| drain port size & location | 1 : 1.0625-12 unf-2b o-ring port - top | ||
| controller type | aa : pressure and flow compensator with .4375-20 sae o-ring load sense port left side | ||
| flow compensator setting | 14 : 12,41-15,17 bar [180-220 lbf/in2] | ||
| control special feature | 00 : no control special features | ||
| auxiliary (rear) mount & output shaft | 00 : no auxiliary mounting features | ||
| pump special features | 00 : no pump special features | ||
| identification / packaging | 00 : mark danfoss product number and full model code on label / individual box packaging |
| code title | adu : pressure compensated/pressure flow compensated open circuit piston pump | ||
| input shaft rotation | r : right-hand rotation (cw) right side suction port, left side pressure port | ||
| main ports size & location | ab : side ports; suction - 2.00 sae j518 4-bolt split flange port standard pressure series (code 61); pressure - 1.00 sae j518 4-bolt split flange port standard pressure series (code 61) | ||
| diagnostic pressure ports | 0 : no diagnostic pressure ports | ||
| pressure compensator setting | 28 : 206,8-213,7 bar [3000-3100 lbf/in2] | ||
| torque control setting | 00 : no torque control or secondary compensator | ||
| maximum displacement option | 02 : external manual stroke adjustment (set at maximum) | ||
| shaft seal | 1 : standard polyacrylate shaft seal | ||
| paint | cd : blue primer per spec 209-13cd | ||
| design code | c : third design |
