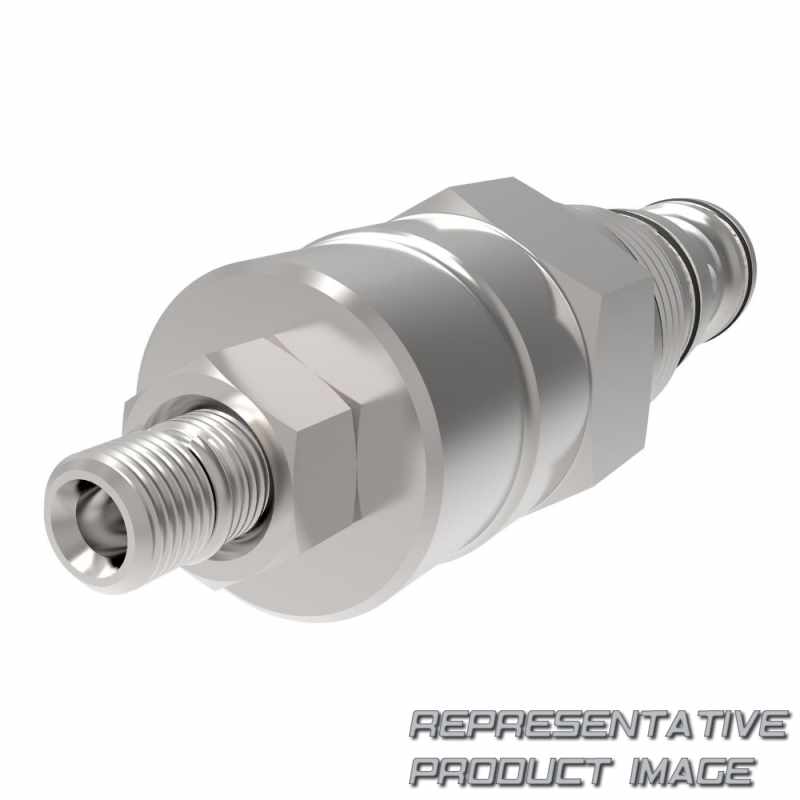

| screw-in cartridge valves | 1ce90; danfoss screw-in cartridge valve; overcenter; standard | ||
| Adjustment | -f : screw adjustment | ||
| pressure range | -20 : 70 - 225 bar ; std setting - 100 bar | ||
| pilot ratio | 8 : 8;1 | ||
| special features | no special features |

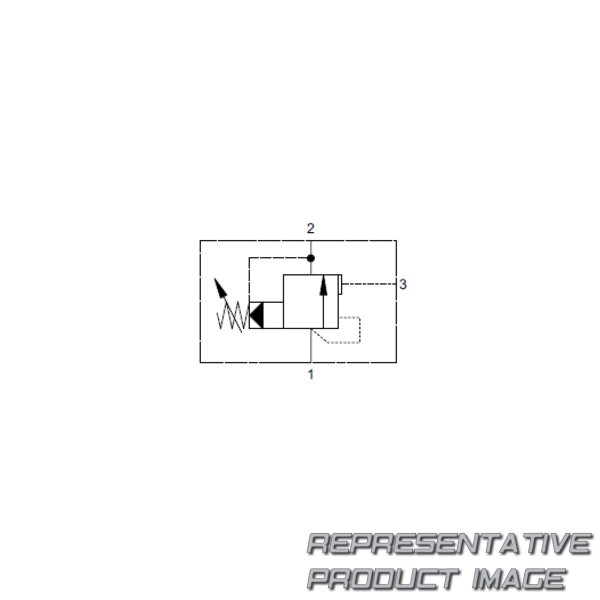

| Series | 1ce90 : over center valve -pilot assisted relief with check valve-90 l/min - catridge only | ||
| Port size | cartridge only | ||
| Seal | s : nitrile (for use with most industrial hydraulic oils) | ||
| body material | aluminum (for pressure setting < 210 bar) | ||
| special pressure setting | * : special pressure setting in bar |
